Product Details

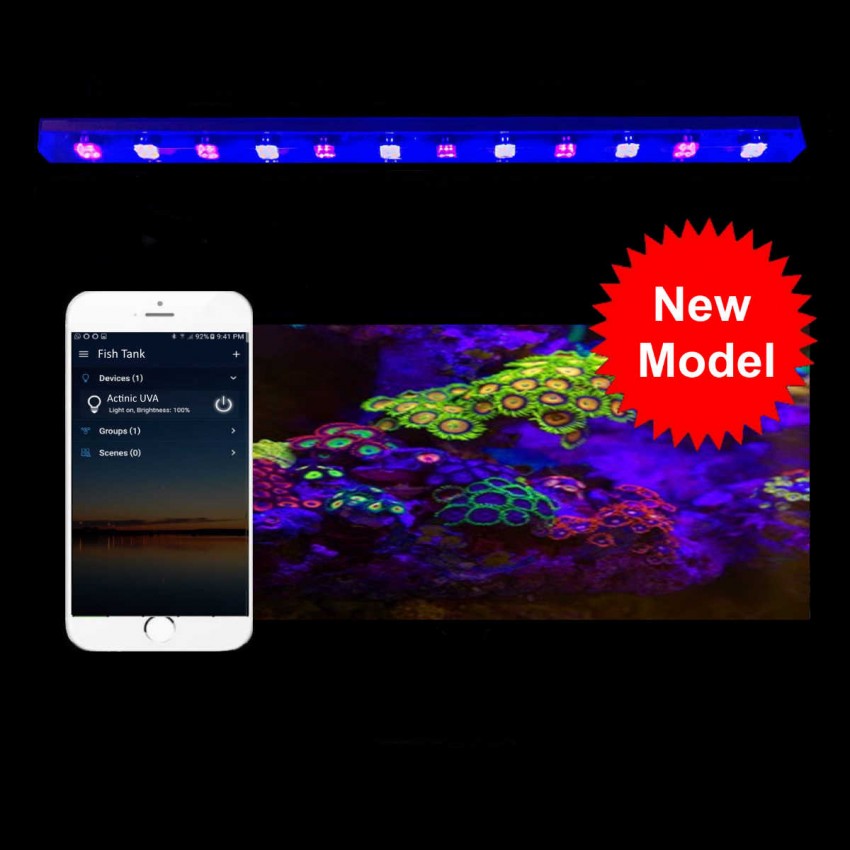

MML-ACTLB-120 is a 120cm long ultra bright high performance Actinic/UVA led bar producing max colour pop on coral reef aquariums. This blend of 450nm Royal Blue and 405nm UVA power leds gives awesome colour pop on coral tanks with a nice shimmer and on low makes the perfect moonlight. Pair this bar with the Coral Sun bar for an even better visual experience.

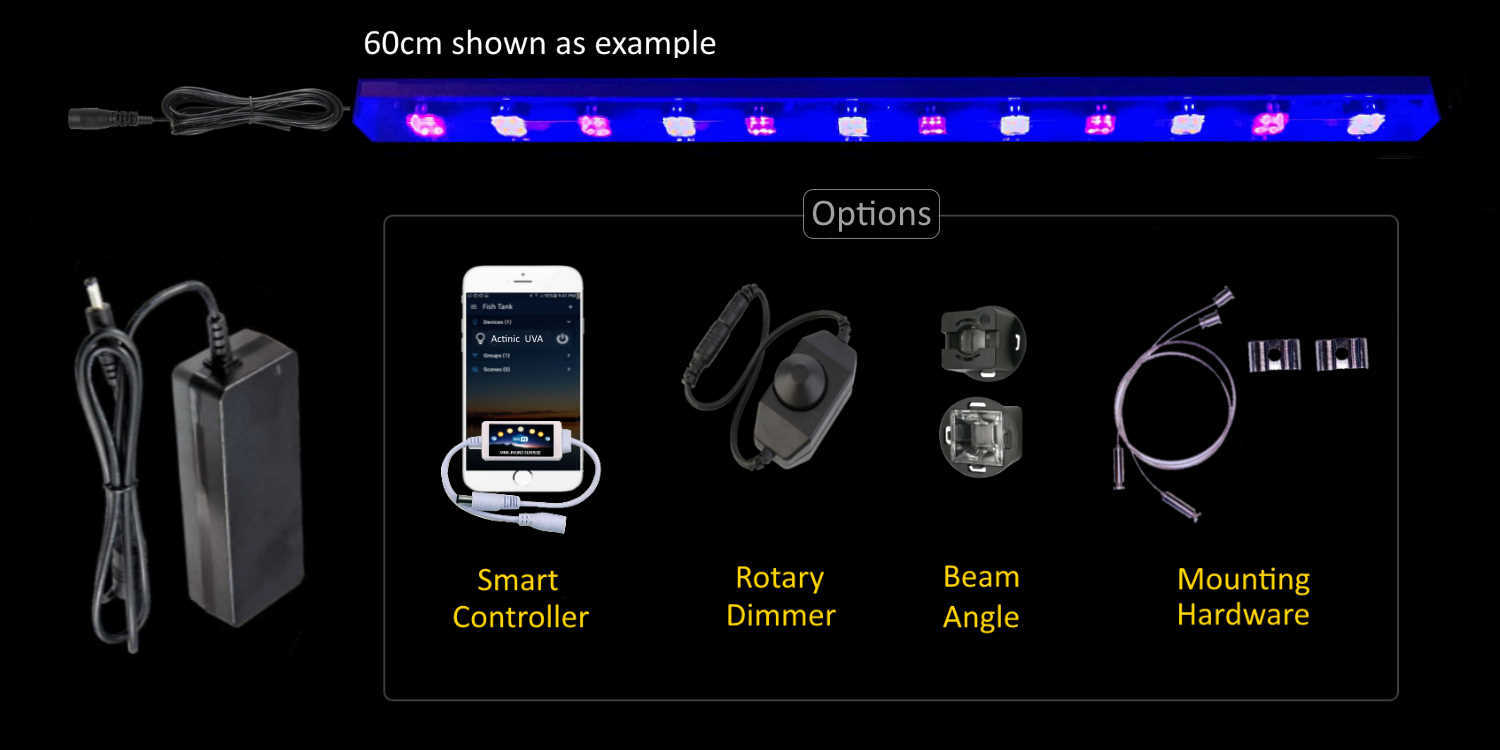

Full manual control via Rotary dimmer or App, if using the smart controller there are timers to automate On/Off and intensity
Ready to plug in and go, incorporates 3W power leds for very high intensity and offers a choice of optic lenses (beam angle) 120°, 90°, 60°, 45° and 30° to focus high light and PAR to specific depths up to 2 meters deep. This led blend will make your corals pop like you've never seen them before and will also sustain and maintain Coral, Corraline Algae, Zooxanthellae algae and Macro algae growth. Produces a beautiful shimmer with a spectacular visual appearance similar to the view you see 10 metres down on an equatorial reef at midday and looks crisp, bright and natural to the human eye.
Ultra bright with intensity similar to 2 x T5 fluro bars, dimmable but not colour tunable.
The spectrum and colour temp is locked in at build time, dimmable but not colour tunable,

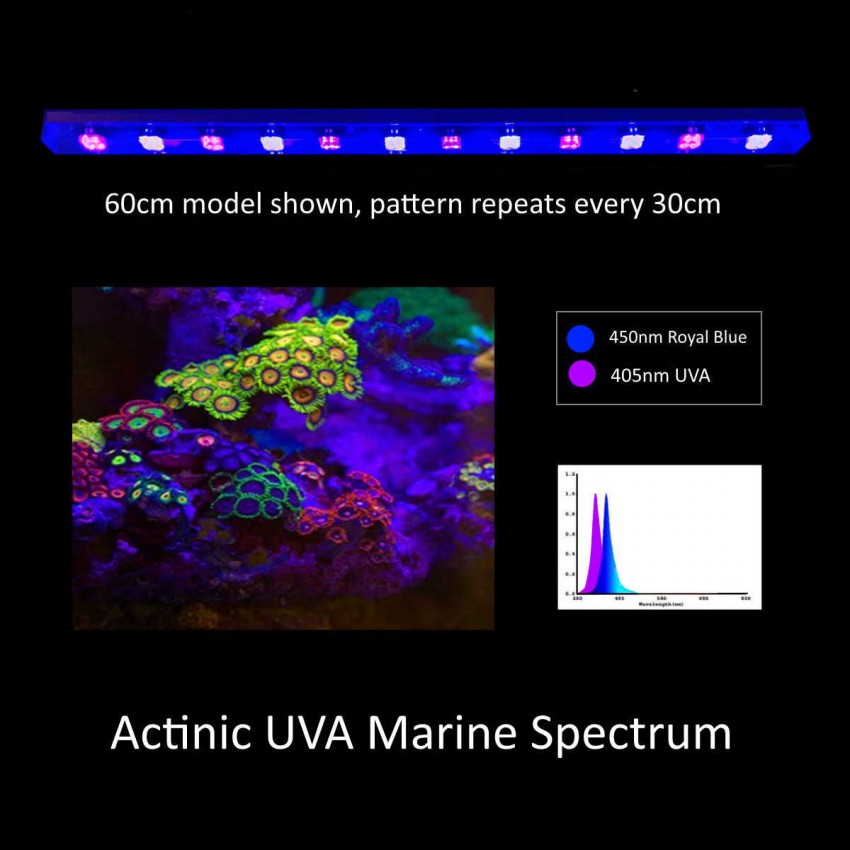

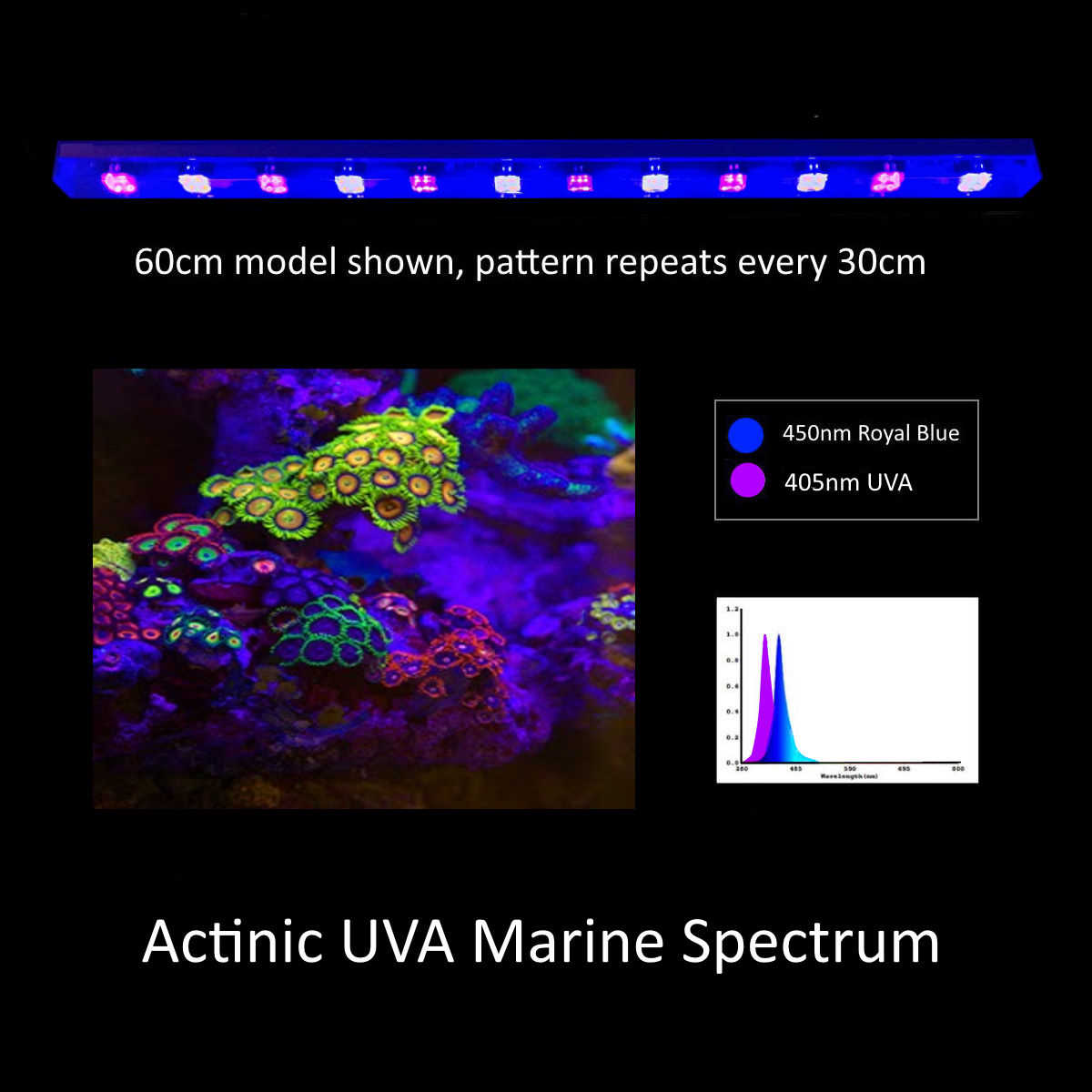

A tried and proven classic mix of 450nm Royal Blue and 405nm UVA 3W power leds with a beautiful Actinic blue colour and awesome shimmer.

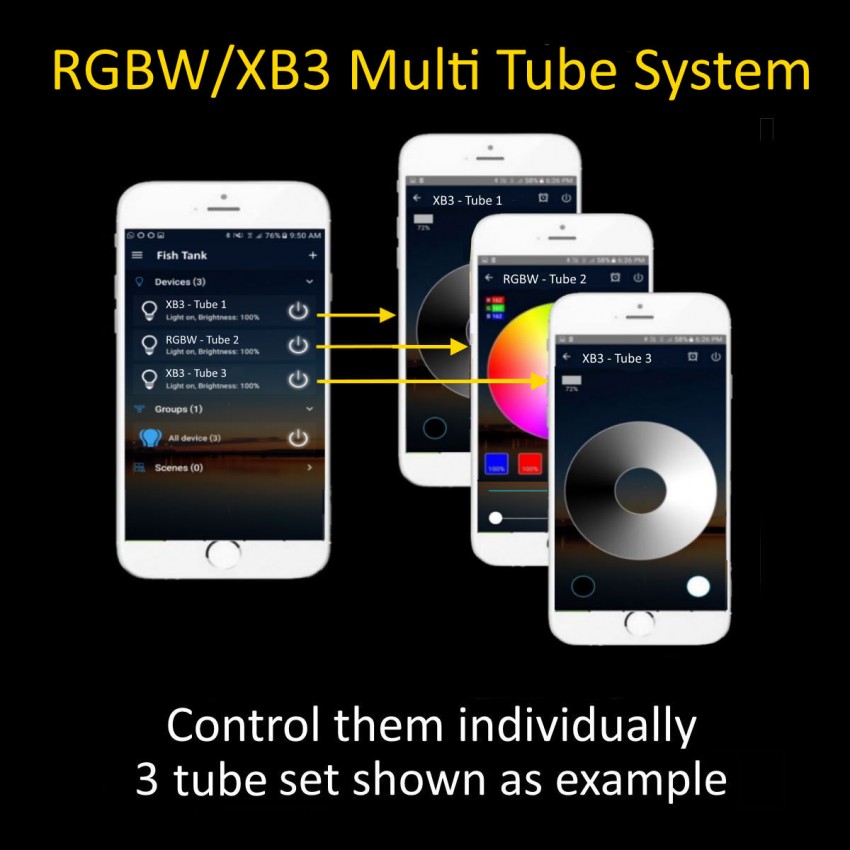

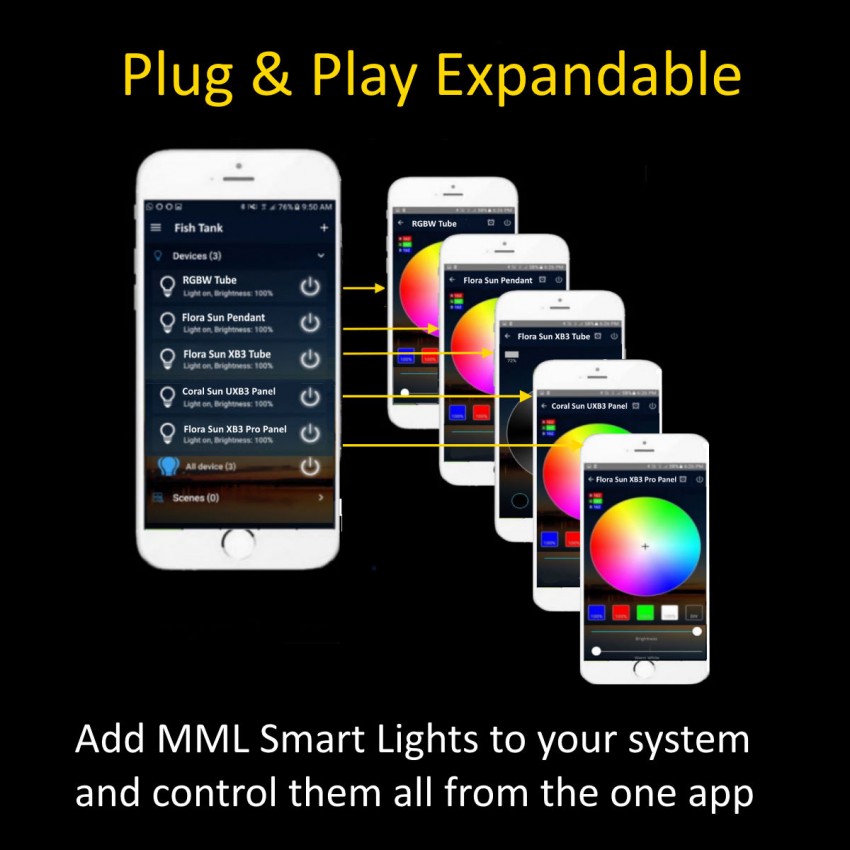

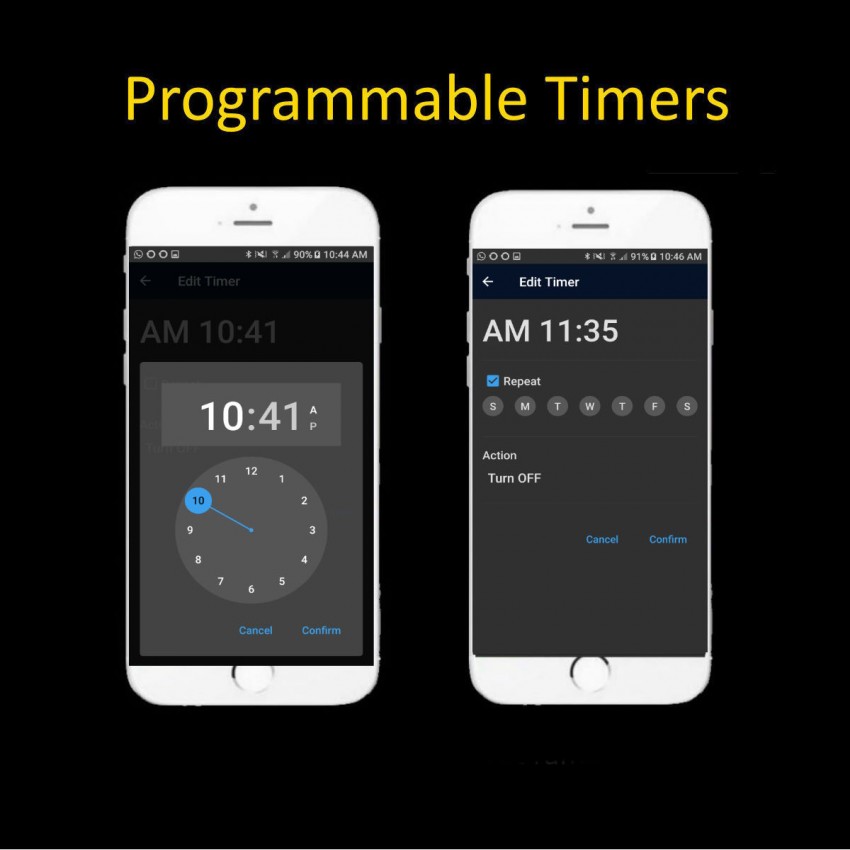

If using the smart controller, download the app, plug in your light, manually control the brightness or automate it using the app's onboard timers.

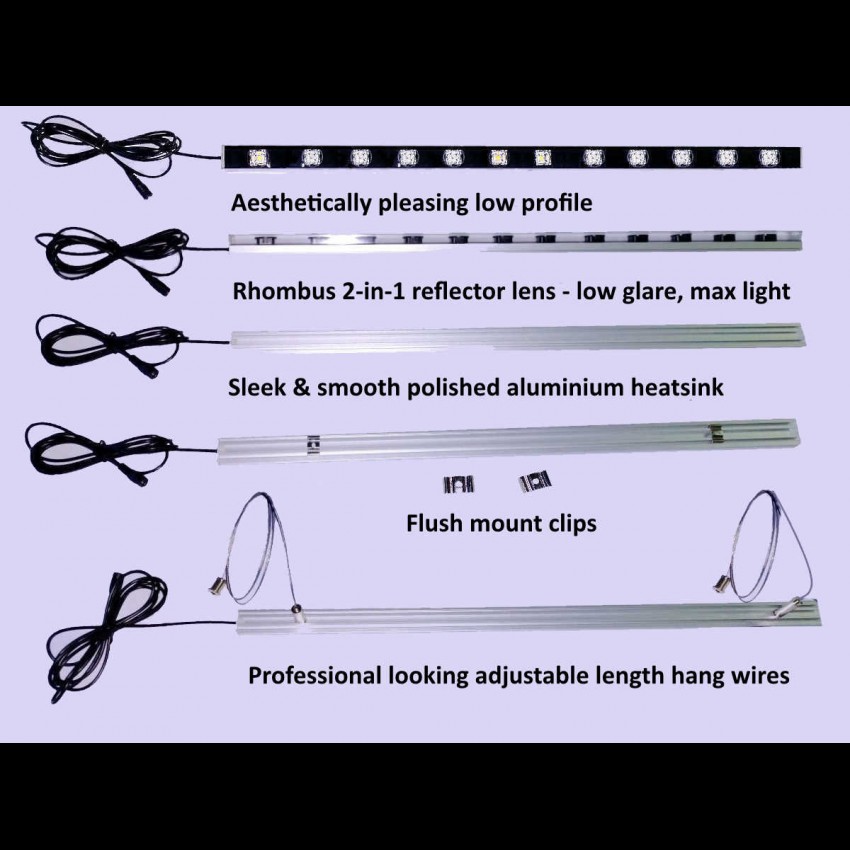

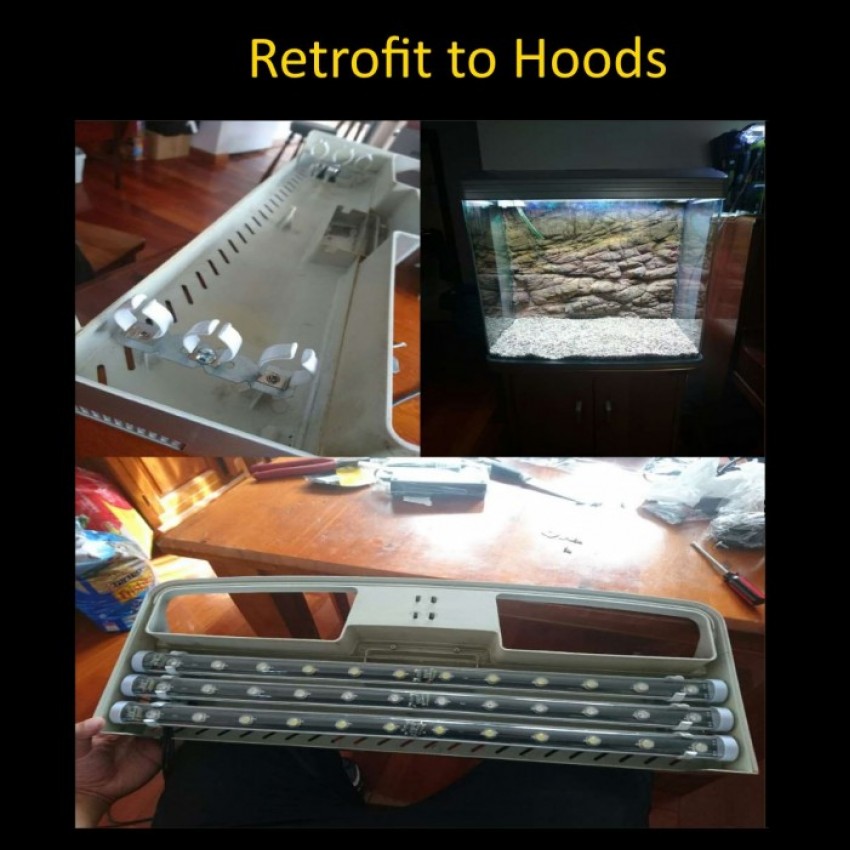

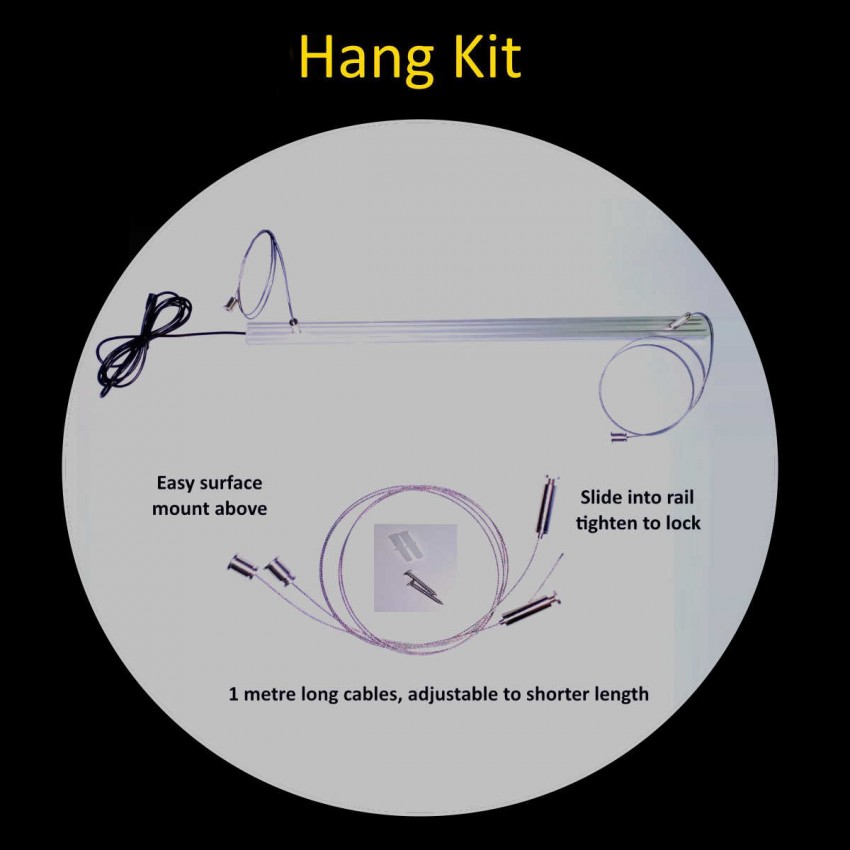

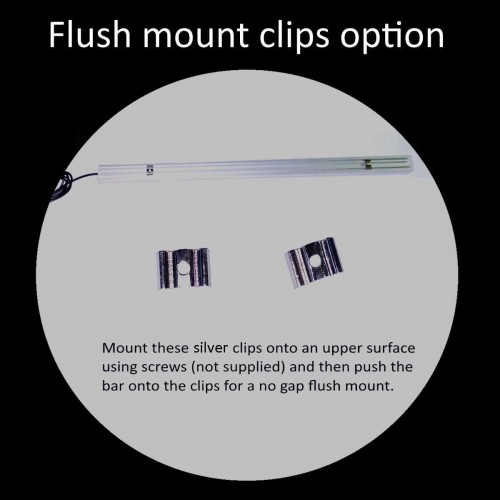

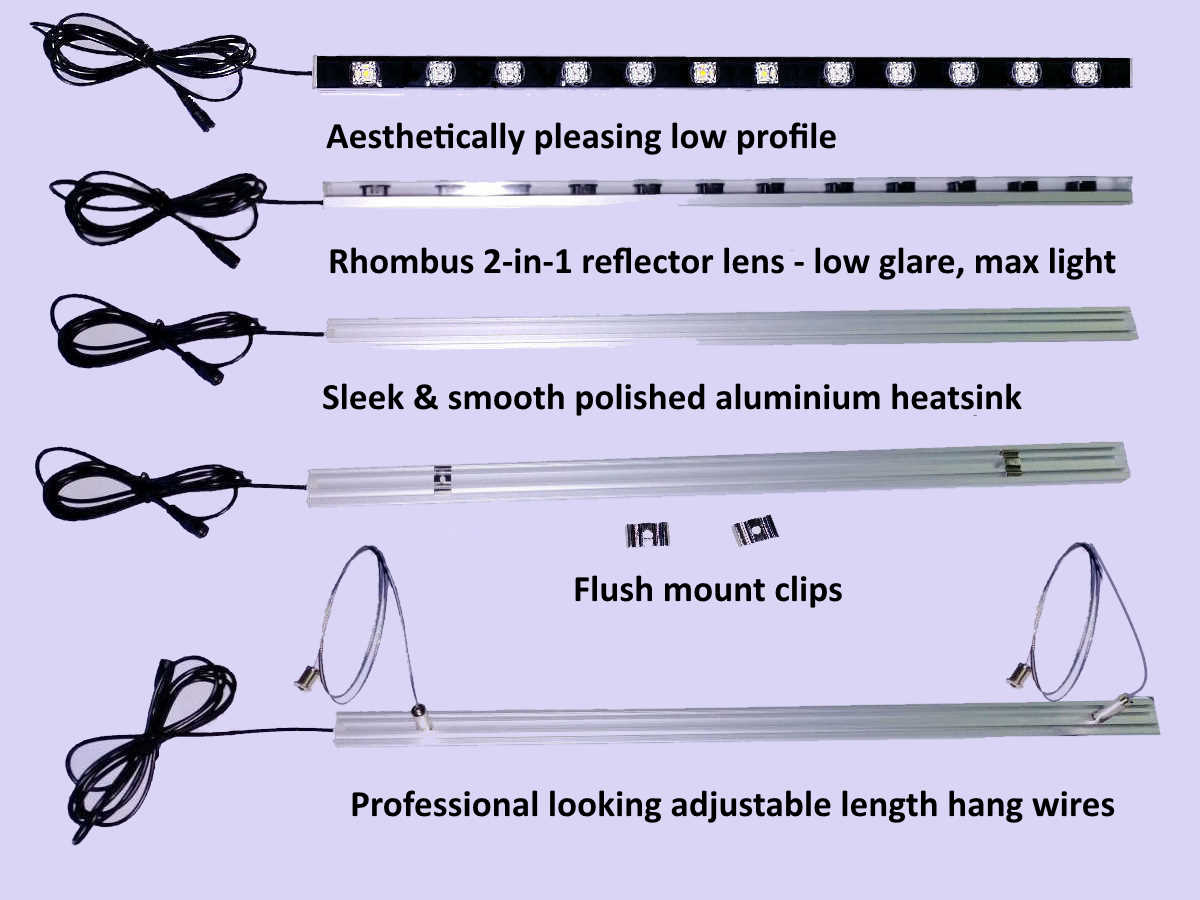

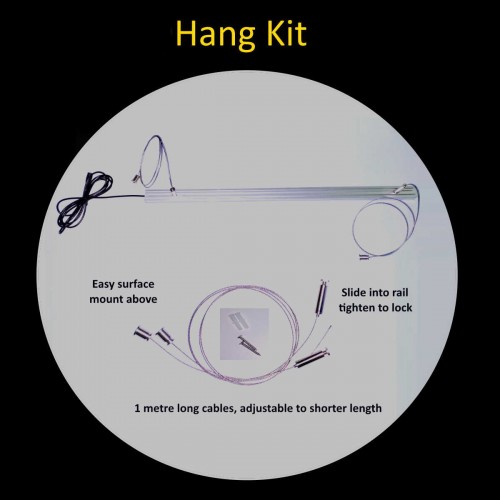

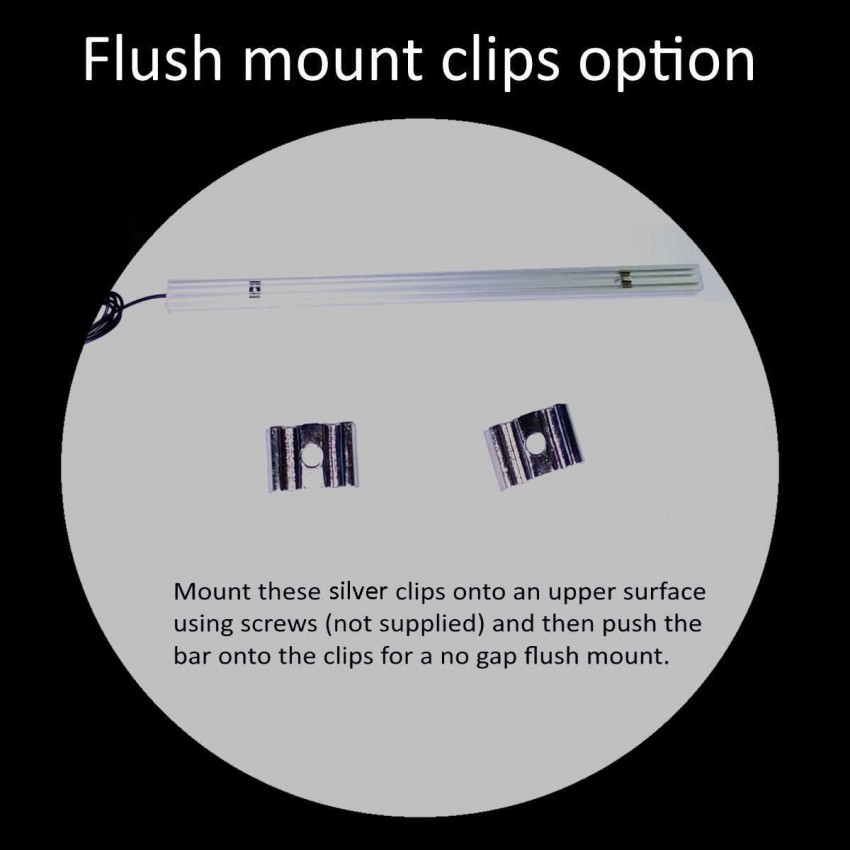

Light weight with a small footprint and are easily mounted on glass lids or hoods using the supplied universal mounting clips, or suspended using a hang kit. Bars can be rotated for directional lighting, no reflectors required.
Brightness is the measure of how bright lights are to the human eye, PPFD (Photosynthetic Photon Flux Density) often referred to as PAR is the measure of how effective
light is to the inhabitants under water and varies according to how deep the water is, decreasing PAR as the water gets deeper.
This system comes with a choice of six optical lenses (aka beam angle), 120°, 90°, 60°, 45° and 30° , each one suits a specific depth range in aquariums.
Optical lenses focus the light beam and produce a beam to match the optical angle i.e. 90° produces a 90° beam angle and 60° produces a 60° beam angle, Optic angle
is also known as the beam angle. The smaller the angle the higher the intensity at the substrate with lower horizontal area coverage,
the higher the angle the lower the intensity at the substrate with higher the horizontal area coverage.
| Beam Angle |
Height from light to bottom of tank in cm |
| 15 |
30 |
45 |
60 |
75 |
| 120° |
183 |
135 |
100 |
73 |
54 |
| 90° |
198 |
146 |
107 |
78 |
57 |
| 60° |
214 |
158 |
117 |
85 |
62 |
| 45° |
232 |
182 |
134 |
98 |
71 |
| 30° |
278 |
218 |
160 |
117 |
86 |
| 15° |
418 |
327 |
240 |
176 |
128 |

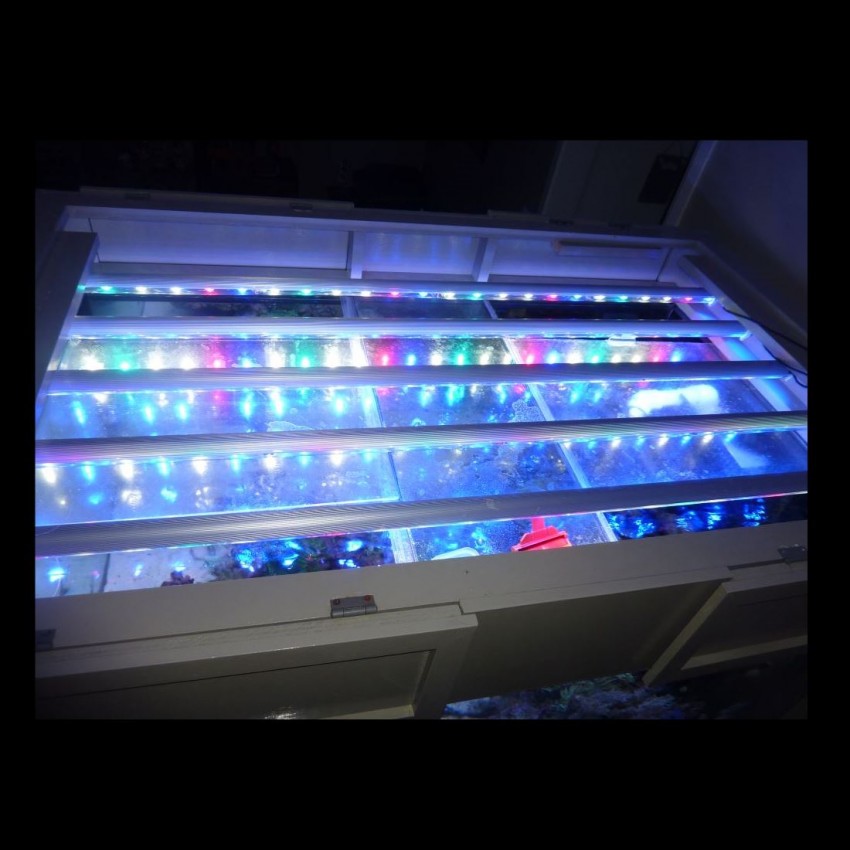

- PAR will be approx 20% higher if more bars are added 9cm apart and 40% higher if 5cm apart.
- This is a high light system and is fully dimmable so you can run it at lower than full capacity if you don't need that much light.
Simple Rotary Dimmer is
a simple low tech dimmer for those that don't like high tech or don't need it. Has On/Off and 0%-100% dimming.

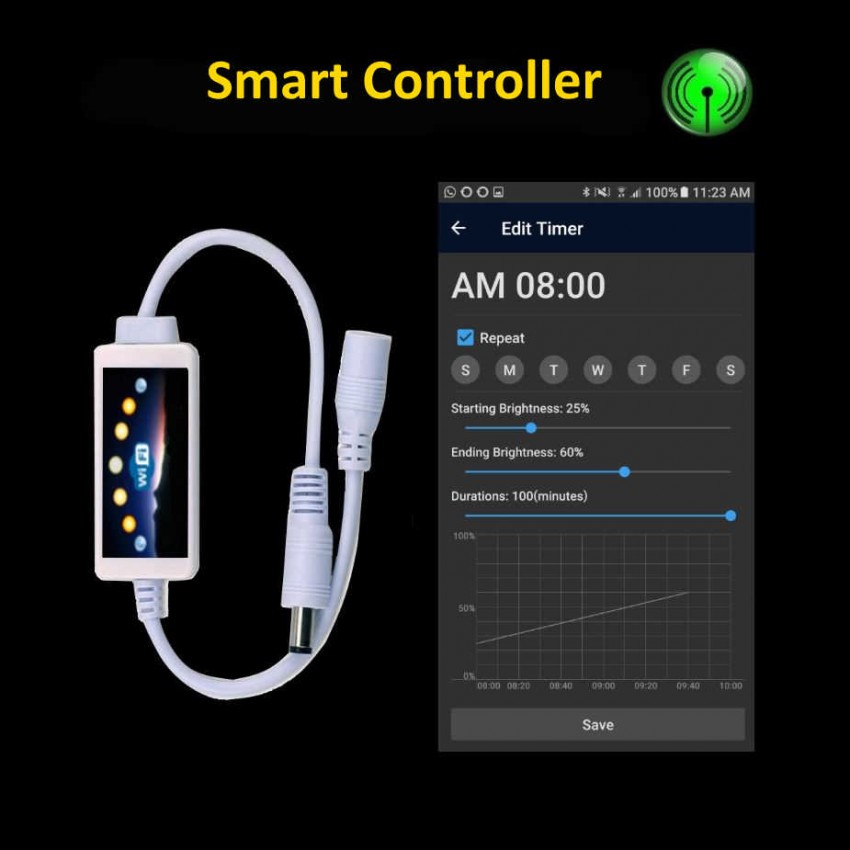

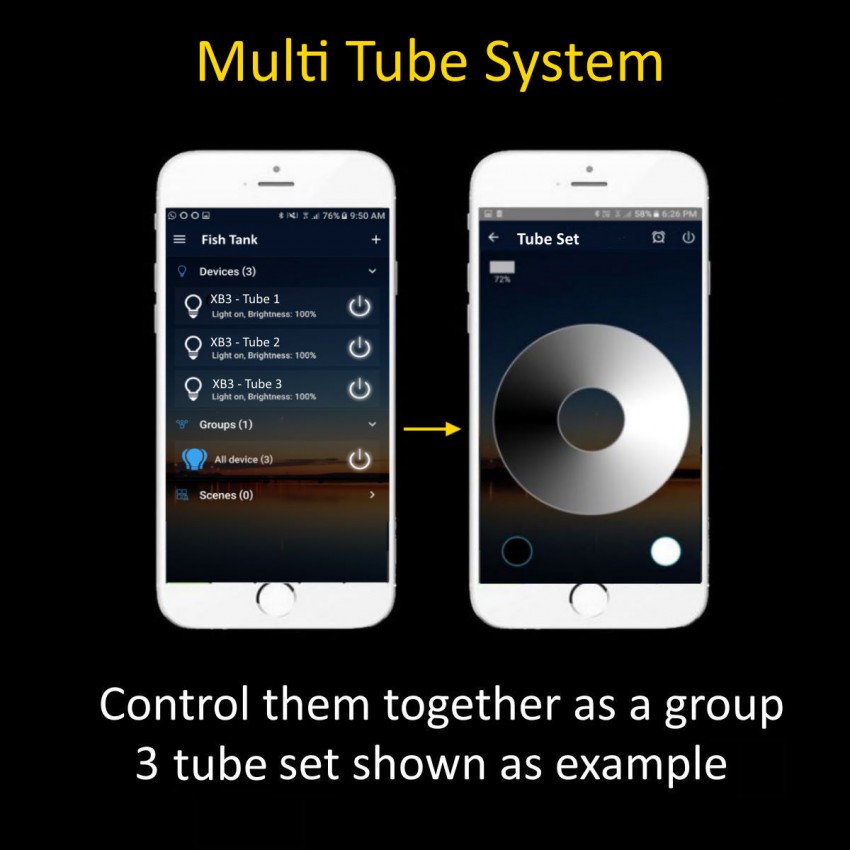

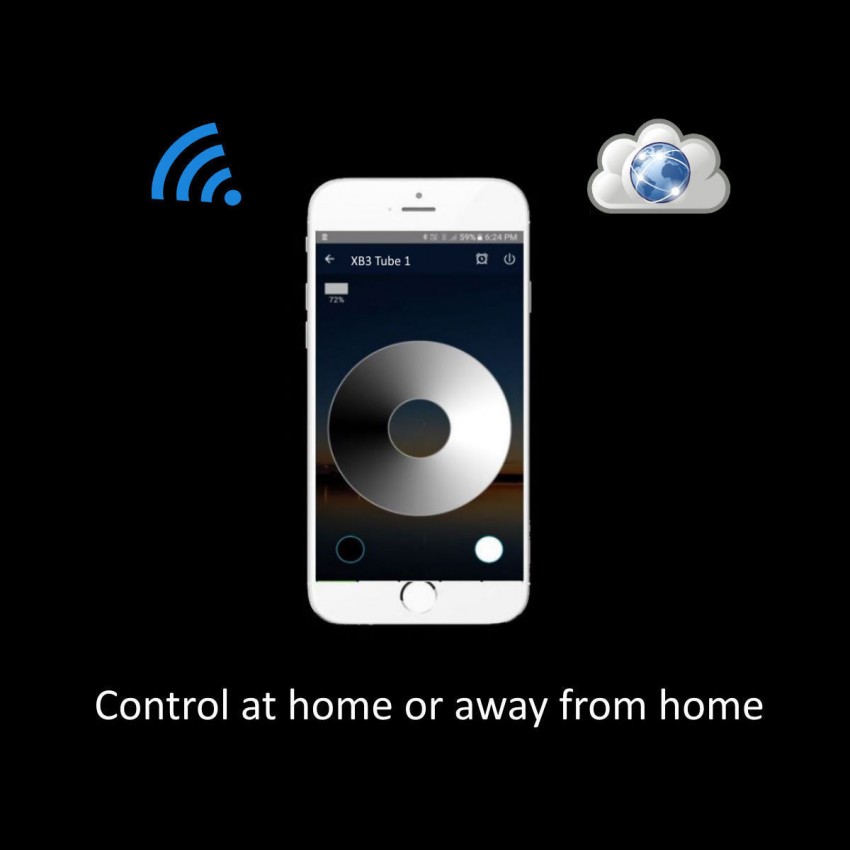

Smart Controller (model mml-1ch-smart) is
a versatile WiFi enabled sunrise/sunset/moonlight ramping controller where your mobile becomes the control centre for your light,

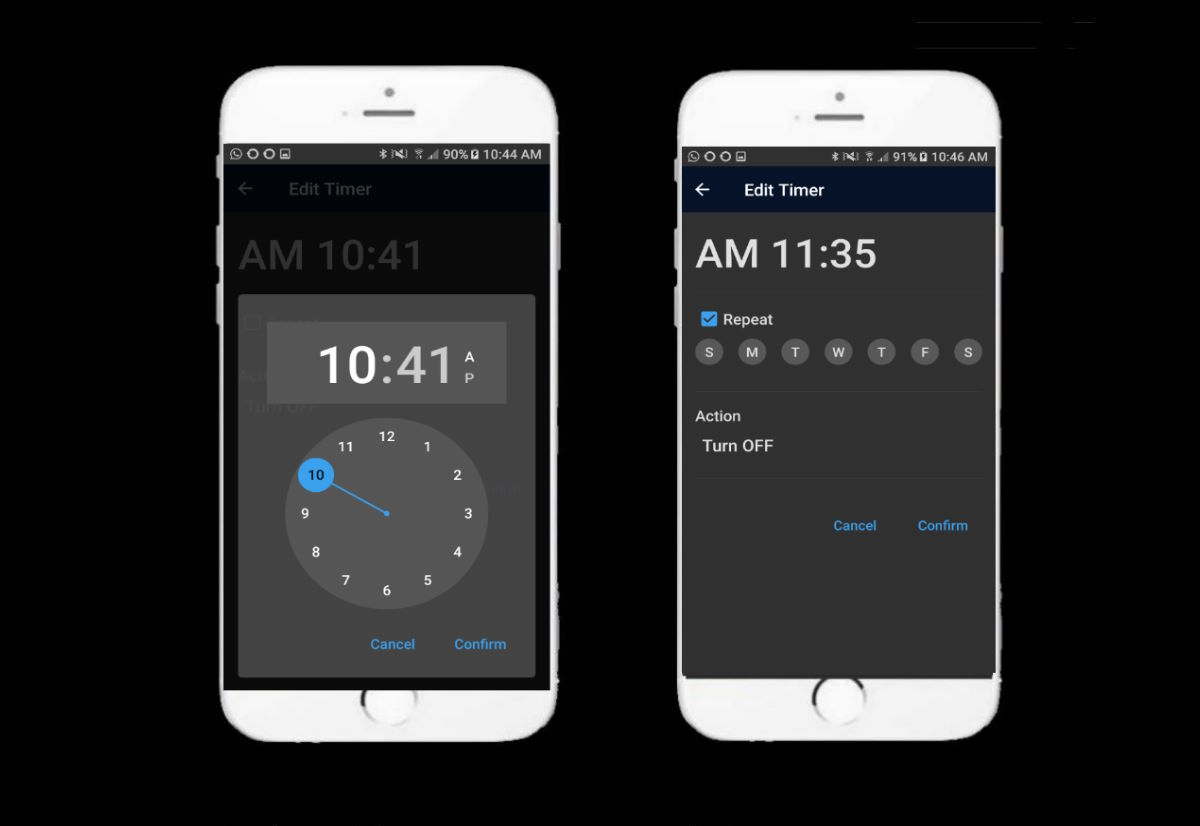

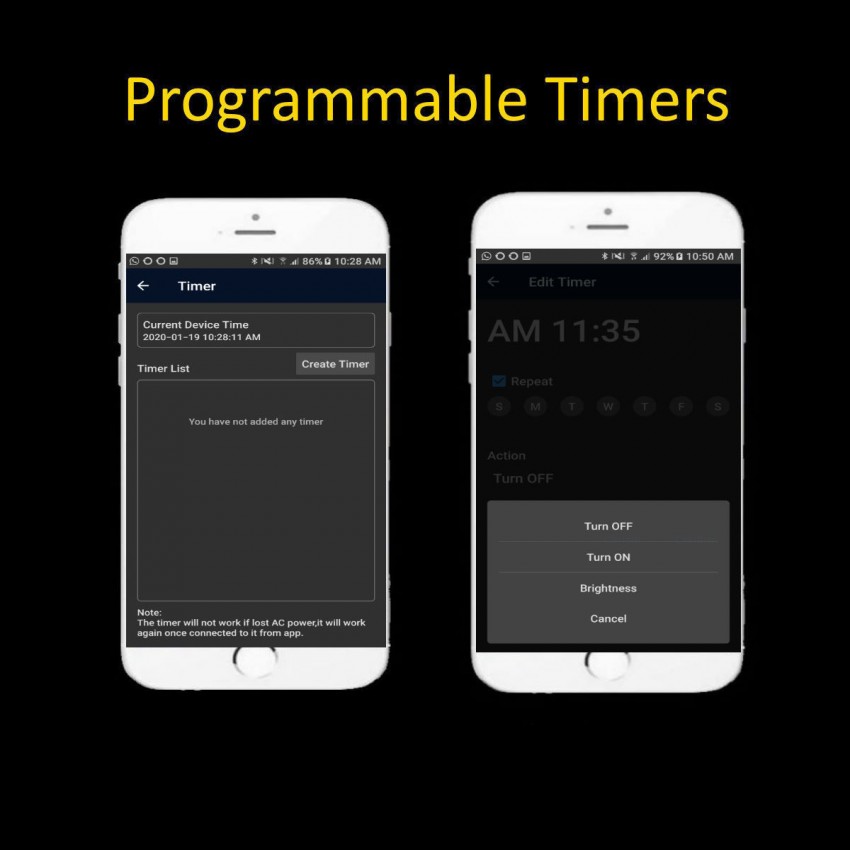

use the app to manually control your light or set app timers for automated on/off, automated intensity settings and automated ramping.
