200K Dual Channel Dimming Pot

thu

    • In Stock    $5.50

  •       interest free


Product Details

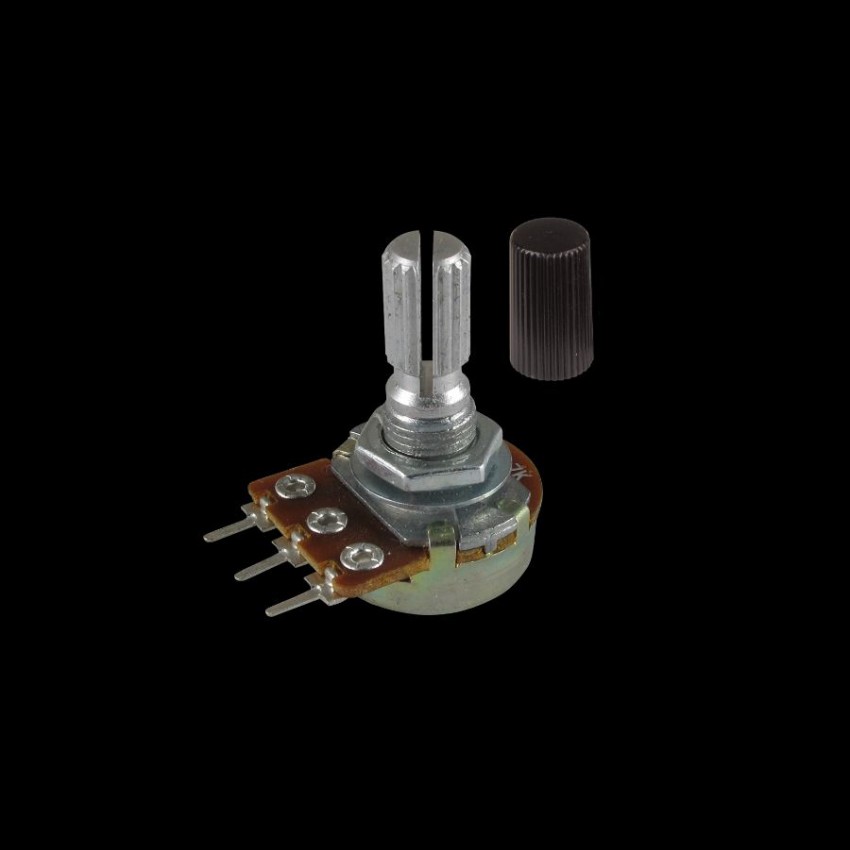

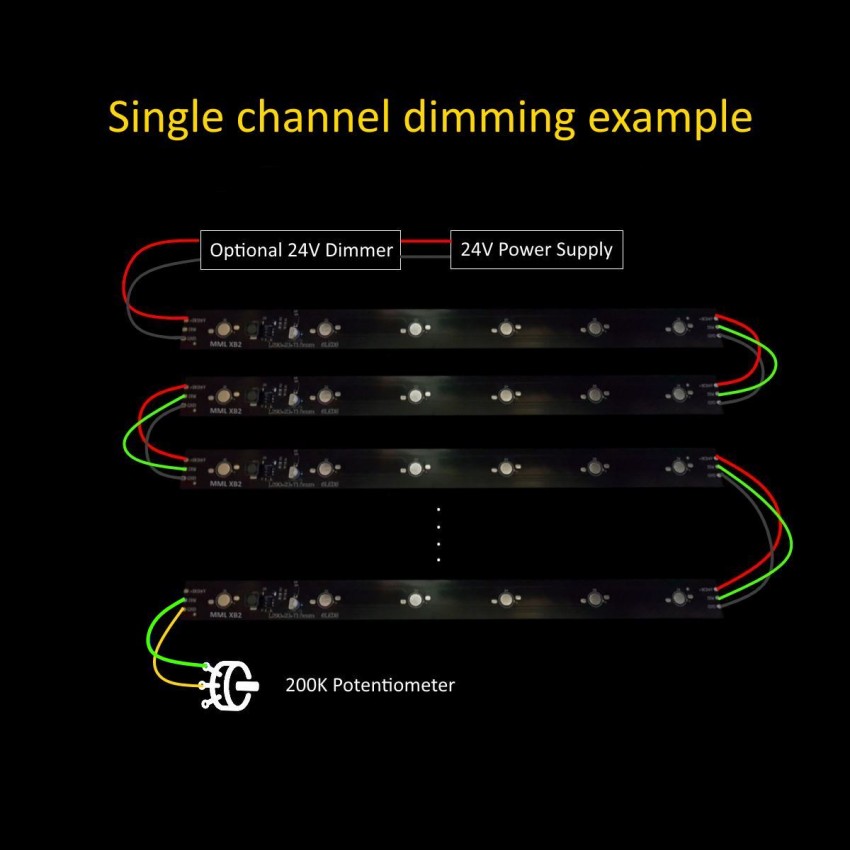

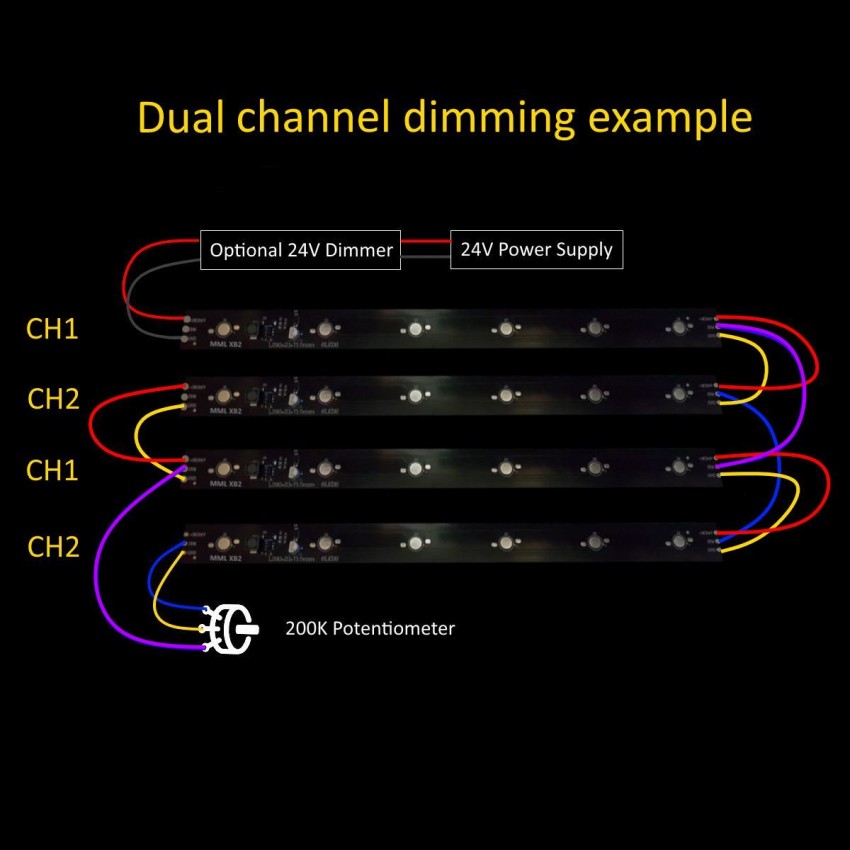

A dual channel 200K Ω dimming potentiometer with nut, washer and knob for dimming control on MakeMyLed XB2 circuit boards. Turn left  to increase intensity on channel one and decrease intensity on channel 2, turn right to decrease intensity on channel 1 and increase intensity on channel 2. Centre position is both channels on 100%.  The centre pin connects to the GND connection on the XB2 board, the left and right pins can connect to the DIM connection on the XB2 board.


Whats In The Box


Model MML-POT-200
Name 200K Dual Channel Dimming Pot
Size 15mm shaft
  • 15mm shaft
  • Includes nut, washer and slide on knob
