LED Tubes
Fresh Water LED Tubes
- Amazing Colour Pop, colour saturation and Awesome shimmer!
- Fully dimmable via manual dimmer or programmable smart app
- Programmable Sunrise/Sunset and moonlight feature in the app
- Safe low 24VDC for your safety
- Anti Glare Rhombus optic lenses for crisp, clear and vibrant colours
- Perfect Planted Tanks, Shrimp tanks, Terrariums, Paludariums
Any ONE of the green box options below are suitable for your needs
Awesome Deep, Rich and Vibrant Colours
The Aurora HD2 Series Lights
New from the MMLED aquatic labs for 2026, the Aurora HD2 Fresh Water high powered colour tunable led tubes specifically designed for Fresh water aquariums.
HD Really? The first comment we received when showing off this light was "It looks like HD" , and it does! The viewing experience has to be seen to be believed, crisp, clear, vibrant deep and natural colours like you see on HD TV!
Available in 3 exciting spectrums:-
- RGB-UV - For Aquascape Photography
- RGB-C - For Max Colour Pop
- WRGB - Classic All Rounder
All 3 spectrums look great and perform equally on fresh water tanks!
Feature rich and packs a punch
Feature Summary
- Amazing colour Pop, colour saturation and Awesome shimmer!
- Available in RGB-UV, RGB-C and WRGB spectrums
- Programmable colour tuning, dimming and On/Off in the app
- Google Home & Alexa integration
- Available in 2 or 4 tube sets and 30, 60, 90, 120, 150 and 180cm lengths
- Safe low 24VDC for your safety
- Bluetooth/Wifi Smart, or Manual push button controller
- Anti Glare Rhombus optic lenses for crisp, clear and vibrant colours
- Perfect for Aquascaping, Fish Tanning, Planted Tanks, Shrimp tanks, Terrariums, Paludariums
Engineered for reliability and performance
MMLED Aurora HD2 Fresh Water series lights use high powered quality leds running at optimum power for the longest possible life.
The spectrum provides optimum viewing pleasure and superior plant growth all in the one fixture! An exciting visual experience showing off the deepest reds and greens in plants while highlighting reds, greens and blues in fish.
Featuring a stunning array of colour tunable 3-in-1 RGB power leds and your choice of Crimson Fluoresce, UV or White power leds to allow you to get the exact look and performance you want.
The MMLED Aurora HD2 Fresh Water series lights not only produce an awesome and unrivaled viewing experience with glowing deep, rich and natural colours,
but also have the perfect spectrum to grow both red and green plants like there's no tomorrow!
RGB-UV Spectrum
The perfect mix of RGB 3-in-1 and UVA power leds to satisfy the most demanding Pro Aquascapers. UVA brings an interesting colour depth and dimension and is also said to be beneficial for plants and fish.
While the addition of UV is particularly sought after for aquascaping and for fish tanning, all planted aquariums benefit from and look great under this spectrum. The effects of UV light on plants and fish is a highly investigated topic with research spanning decades.
Delivers vibrant, crisp and natural lighting with awesome colour rendition and shimmer.
All channels on at the same intensity is the best way to show off this spectrum, gives perfect colour with stunning clarity and colour depth providing scapers an unrivalled competition level spectrum.
The UV power leds are locked into the RED channel, it makes sense to do this because RED channel on high is a no brainer for fresh water tanks and feature leds that need to come into play should therefore also be on this channel.
RGB-C Spectrum
The perfect mix of RGB 3-in-1 power leds and Crimson Fluoresce power leds to give unrivalled colour pop, especially reds but great colour pop on Greens and Blues too.
This spectrum delivers vibrant, crisp and natural lighting with awesome colour rendition and shimmer.
All channels on at the same intensity is the best way to show off this spectrum, gives amazing colour with stunning clarity and colour depth on heavily planted tanks, large shrimp tanks and fish displays
The Crimson power leds are locked into the RED channel, it makes sense to do this because RED channel on high is a no brainer for fresh water tanks and feature leds that need to come into play should therefore also be on this channel.
WRGB Spectrum
An old time favourite, the perfect mix of RGB 3-in-1 power leds and Cool White leds for that classic RGBW look that has white leds in the mix.
Like the other two spectrums, it delivers vibrant, crisp and natural lighting with awesome colour rendition and shimmer.
All channels on at the same intensity is the best way to show off this spectrum, gives a crisp and natural colour with stunning clarity and colour depth.
The White power leds are locked into the RED channel, it makes sense to do this because RED channel on high is a no brainer for fresh water tanks and feature leds that need to come into play should therefore also be on this channel.
Controller Options
Smart Controller (not suitable for use with wall timers)
The smart controller has a sophisticated full featured app (Android and iOS) that allows control of the brightness and colour and with daily set and forget automation using Bluetooth or Wifi connectivity and is also Google Assistant and Alexa aware for advanced automation routines and voice control.
Manual Controller (suitable for use with wall timers)
For those that don't like or need technology and just want a great light that can be turned on and off at the wall. A simple manual push button controller for On/Off, brightness and colour settings that remembers the last setting after power off and on.
No Controller (suitable for use with wall timers)
For those that just need a great light with the perfect spectrum that turns on full and off at the wall plug. Perfect for commercial plant growers and those that want zero technology.
Hood Mounting
Hood mounting requires a little diy because all hoods are different, each tube comes with a pair of universal mounting clips to help make this an easy job.
Rim Mounting
The adjustable bracket mounting kit makes it a simple task to rim mount the Aurora HD tubes.
The bracket will fit on rims up to 21mm wide and the L shaped support rod is 250mm x 140mm
Glasstop Mounting
The tubes are so light and compact they can be laid directly on glass lids.
Most of the heat on these lights is projected upwards and very little heat is projected down so the glass won't get too hot.
Anto Glare Rhombus Optic lenses
The MMLED Aurora HD series lights feature dual purpose Anti Glare Rhombus Optic lenses/reflectors for crisp, clear and vibrant light.
Whats In The Box
- 1 x MMLED Aurora HD2 Two set for 30,60,90,120,150 or 180cm length with 2 metre cables
- 2 x Aurora HD2 Smart or Manual controllers, or direct connection with no controllers if you prefer just on/off at the wall
- 1 x 24V power supply to connect to the controller. Comes with an AU/NZ IEC plug and cable. (For non AU/NZ customers, MMLED will supply an adaptor plug suitable for your country)
- Universal Mounting clips
Beam Angle Choice
| Total Height | Tank Style | ||
| Live Plants & CO2 | Live Plants no CO2 | No live Plants | |
| 15cm | 120° | 120° | 120° |
| 30cm | 120° | 120° | 120° |
| 45cm | 120° | 120° | 120° |
| 60cm | 90° | 90° | 120° |
| 75cm | 60° | 90° | 90° |
| 90cm | 45° | 60° | 90° |
| 100cm | 30° | 45° | 60° |
The beam angle affects how wide or narrow the light beam will be. A lower degree beam angle like 30 will have a narrower beam than 45.
Narrower beams produce higher intensity and PAR directly below the light but that intensity tapers off as you move out from the center.
Wider beams have a lower intensity and PAR directly below but the intensity does not taper off as quickly.
Choosing an appropriate beam angle for your tank dimensions and lighting needs is not an exact science but use this table as a general guideline.
PAR/PPFD for a Two Tube Set
| Beam Angle | Height from light to bottom of tank in cm | ||||
| 30 | 45 | 60 | 75 | ||
| 120° | 182 | 138 | 105 | 79 | |
| 90° | 219 | 166 | 126 | 96 | |
| 60° | 268 | 203 | 154 | 117 | |
| 45° | 360 | 273 | 208 | 157 | |
| 30° | 404 | 306 | 233 | 177 | |
NOTE: PAR is quoted for WRGB, will be a little lower for the RGB-UV and RGB-C Spectrums
This table shows the PAR (PPFD) readings at distances 30cm to 75cm for the various beam angles for a Two tube set.
Additional tubes will increase PAR by 77% if placed close to each other or will at a minimum keep the same PAR if spaced apart.
PPFD readings of 50 umol/m2/s or over at the substrate is considered adequate lighting to sustain plant growth.
Specs
| Model | MML-FSHD-2TUBESET | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Colour Tunable Aurora HD Fresh Water Two Tube Set | ||||||||||||||||||||||||
| Cabling | Long 2 metre cable that exits from the end of each tube | ||||||||||||||||||||||||
| Dimensions | each tube is 2cm high x 3cm wide | ||||||||||||||||||||||||
| Input Voltage | 110V-240VAC Suitable for worldwide use | ||||||||||||||||||||||||
| Operating Voltage | Low Safe 24V DC | ||||||||||||||||||||||||
| Output |
|
||||||||||||||||||||||||
| Dimming | Fully dimmable 0%-100% | ||||||||||||||||||||||||
| Colour | Fully colour tunable. Deep colour toning, vibrant and rich natural colour rendering | ||||||||||||||||||||||||
| LEDS | RGB 3-in-1 Power LEDS your choice of Crimson Fluoresce, UV or White power leds | ||||||||||||||||||||||||
| Cooling | Passive cooling no fans inside | ||||||||||||||||||||||||
| IP Rating | IP64 | ||||||||||||||||||||||||
| CRI | Colour Rendering index is more than 96% for natural colour reproduction | ||||||||||||||||||||||||
| Spectrum | Full Spectrum. Looks great and hits all photosynthesis peaks for plants to thrive in.
|
||||||||||||||||||||||||
| Warranty | 1 year | ||||||||||||||||||||||||
| Build | |
||||||||||||||||||||||||
FAQ
Click the questions to reveal the answer
Yes this light is fully dimmable using either the hand held remote or the smart phone app.
Is everything included in the box?
Yes everything is included except the mounting hardware which is optional
No it doesn't. This light is already in it's own fixture complete and ready to plug in and go.
Can it be used with a powerpoint timer?
Yes it can be used with a powerpoint timer but there is an integrated smart controller where you can use an app to control on/off and lamp intensity and automate these things on a 7 day cycle
What should I do if I have a problem?
This light is designed for trouble free long term use under normal operating conditions, if you need help you can use the MMLED online chat for assistance and trouble shooting. In the unlikely event there is a fault, the lamp is covered by a 12 months peace-of-mind manufacturers guarantee and you can return it to the place of purchase for a replacement or repair.
What type of light does it produce?
This lamp produces True Colour visible light, a perfect full spectrum for animals and plants and will make your animal colours show like you've never seen them before. No UV light is produced by this lamp.
One MMLED True Colour Reptile & Amphibian LED lamp, Manual dimmer or Smart dimmer, power supply and universal mounting hardware kit. Connect it up, plug in, relax and enjoy!
Awesome Deep, Rich and Vibrant Colours
The Aurora HD2 Series Lights
New from the MMLED aquatic labs for 2026, the Aurora HD2 Fresh Water high powered colour tunable led tubes specifically designed for Fresh water aquariums.
HD Really? The first comment we received when showing off this light was "It looks like HD" , and it does! The viewing experience has to be seen to be believed, crisp, clear, vibrant deep and natural colours like you see on HD TV!
Available in 3 exciting spectrums:-
- RGB-UV - For Aquascape Photography
- RGB-C - For Max Colour Pop
- WRGB - Classic All Rounder
All 3 spectrums look great and perform equally on fresh water tanks!
Feature rich and packs a punch
Feature Summary
- Amazing colour Pop, colour saturation and Awesome shimmer!
- Available in RGB-UV, RGB-C and WRGB spectrums
- Programmable colour tuning, dimming and On/Off in the app
- Google Home & Alexa integration
- Available in 2 or 4 tube sets and 30, 60, 90, 120, 150 and 180cm lengths
- Safe low 24VDC for your safety
- Bluetooth/Wifi Smart, or Manual push button controller
- Anti Glare Rhombus optic lenses for crisp, clear and vibrant colours
- Perfect for Aquascaping, Fish Tanning, Planted Tanks, Shrimp tanks, Terrariums, Paludariums
Engineered for reliability and performance
MMLED Aurora HD2 Fresh Water series lights use high powered quality leds running at optimum power for the longest possible life.
The spectrum provides optimum viewing pleasure and superior plant growth all in the one fixture! An exciting visual experience showing off the deepest reds and greens in plants while highlighting reds, greens and blues in fish.
Featuring a stunning array of colour tunable 3-in-1 RGB power leds and your choice of Crimson Fluoresce, UV or White power leds to allow you to get the exact look and performance you want.
The MMLED Aurora HD2 Fresh Water series lights not only produce an awesome and unrivaled viewing experience with glowing deep, rich and natural colours,
but also have the perfect spectrum to grow both red and green plants like there's no tomorrow!
RGB-UV Spectrum
The perfect mix of RGB 3-in-1 and UVA power leds to satisfy the most demanding Pro Aquascapers. UVA brings an interesting colour depth and dimension and is also said to be beneficial for plants and fish.
While the addition of UV is particularly sought after for aquascaping and for fish tanning, all planted aquariums benefit from and look great under this spectrum. The effects of UV light on plants and fish is a highly investigated topic with research spanning decades.
Delivers vibrant, crisp and natural lighting with awesome colour rendition and shimmer.
All channels on at the same intensity is the best way to show off this spectrum, gives perfect colour with stunning clarity and colour depth providing scapers an unrivalled competition level spectrum.
The UV power leds are locked into the RED channel, it makes sense to do this because RED channel on high is a no brainer for fresh water tanks and feature leds that need to come into play should therefore also be on this channel.
RGB-C Spectrum
The perfect mix of RGB 3-in-1 power leds and Crimson Fluoresce power leds to give unrivalled colour pop, especially reds but great colour pop on Greens and Blues too.
This spectrum delivers vibrant, crisp and natural lighting with awesome colour rendition and shimmer.
All channels on at the same intensity is the best way to show off this spectrum, gives amazing colour with stunning clarity and colour depth on heavily planted tanks, large shrimp tanks and fish displays
The Crimson power leds are locked into the RED channel, it makes sense to do this because RED channel on high is a no brainer for fresh water tanks and feature leds that need to come into play should therefore also be on this channel.
WRGB Spectrum
An old time favourite, the perfect mix of RGB 3-in-1 power leds and Cool White leds for that classic RGBW look that has white leds in the mix.
Like the other two spectrums, it delivers vibrant, crisp and natural lighting with awesome colour rendition and shimmer.
All channels on at the same intensity is the best way to show off this spectrum, gives a crisp and natural colour with stunning clarity and colour depth.
The White power leds are locked into the RED channel, it makes sense to do this because RED channel on high is a no brainer for fresh water tanks and feature leds that need to come into play should therefore also be on this channel.
Controller Options
Smart Controller (not suitable for use with wall timers)
The smart controller has a sophisticated full featured app (Android and iOS) that allows control of the brightness and colour and with daily set and forget automation using Bluetooth or Wifi connectivity and is also Google Assistant and Alexa aware for advanced automation routines and voice control.
Manual Controller (suitable for use with wall timers)
For those that don't like or need technology and just want a great light that can be turned on and off at the wall. A simple manual push button controller for On/Off, brightness and colour settings that remembers the last setting after power off and on.
No Controller (suitable for use with wall timers)
For those that just need a great light with the perfect spectrum that turns on full and off at the wall plug. Perfect for commercial plant growers and those that want zero technology.
Hood Mounting
Hood mounting requires a little diy because all hoods are different, each tube comes with a pair of universal mounting clips to help make this an easy job.
Rim Mounting
The adjustable bracket mounting kit makes it a simple task to rim mount the Aurora HD tubes.
The bracket will fit on rims up to 21mm wide and the L shaped support rod is 250mm x 140mm

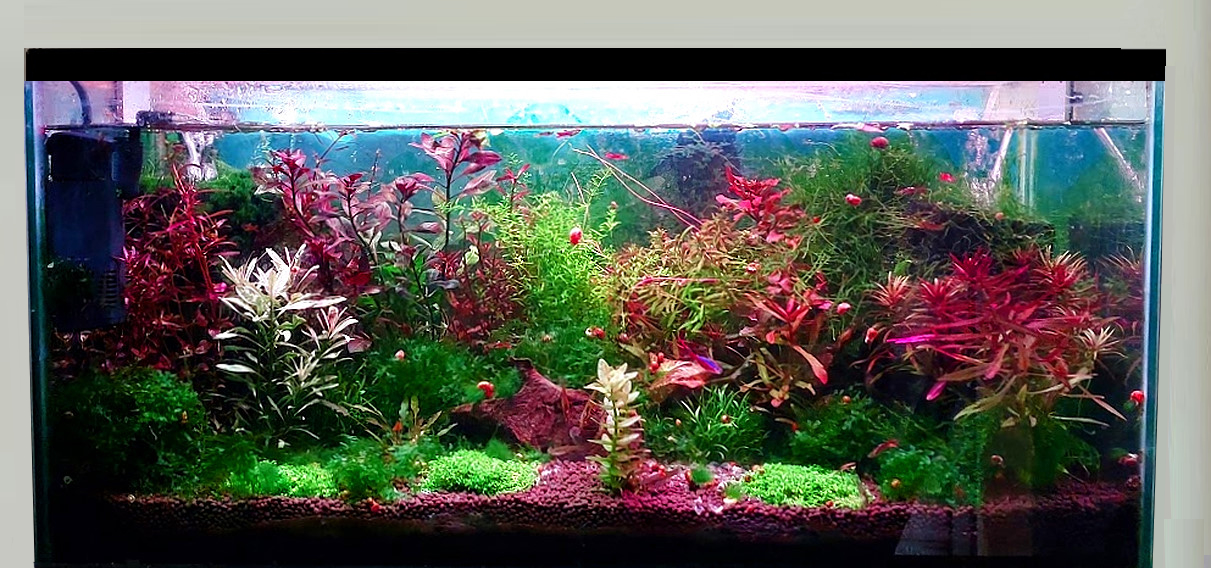

Glasstop Mounting
The tubes are so light and compact they can be laid directly on glass lids.
Most of the heat on these lights is projected upwards and very little heat is projected down so the glass won't get too hot.
Anti Glare Rhombus Optic lenses
The MMLED Aurora HD series lights feature dual purpose Anti Glare Rhombus Optic lenses/reflectors for crisp, clear and vibrant light.

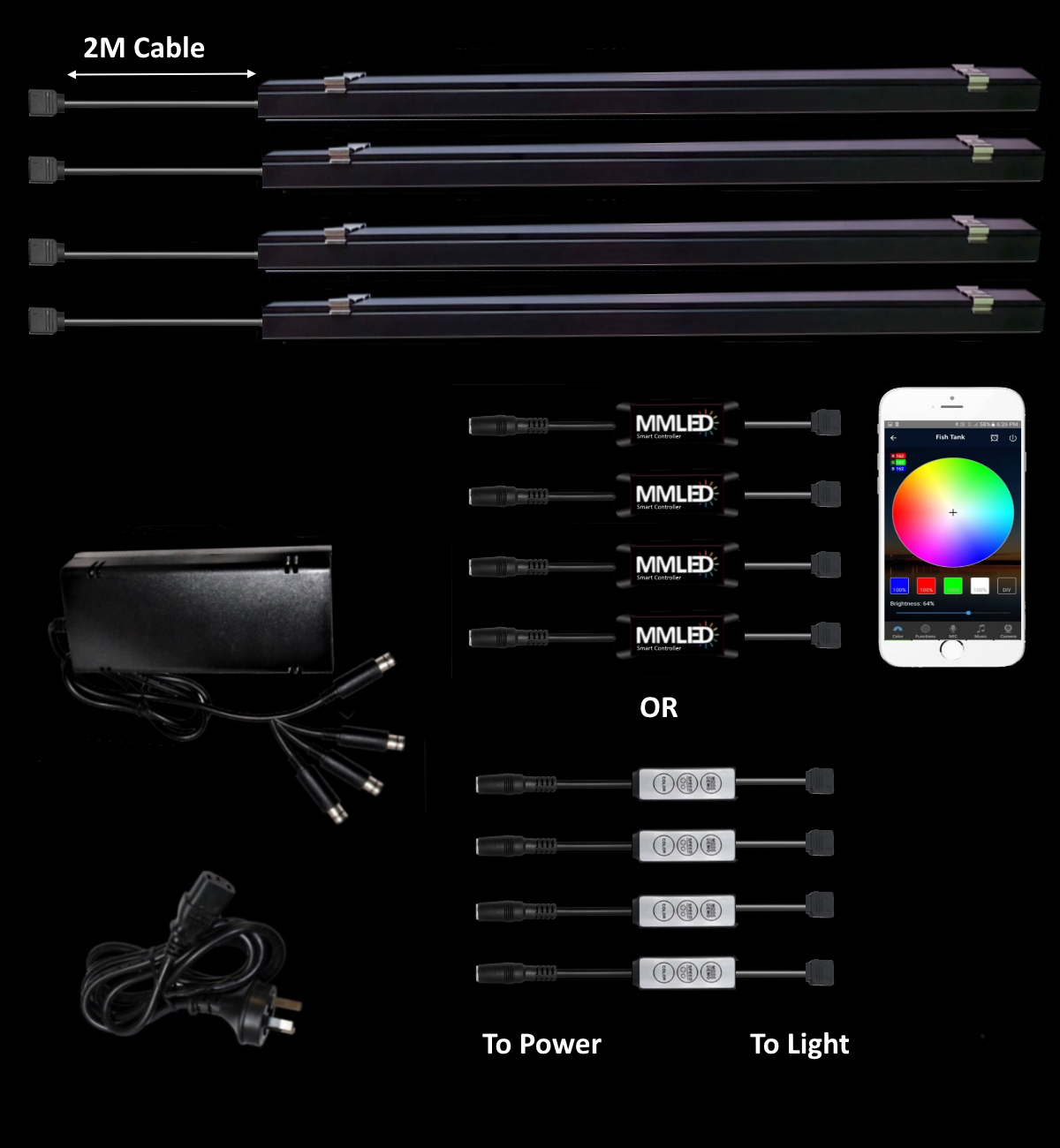

Whats In The Box
- 1 x MMLED Aurora HD2 Four tube set for 30,60,90,120,150 or 180cm length with 2 metre cables
- 4 x Aurora HD2 Smart or Manual controllers, or direct connection with no controllers if you prefer just on/off at the wall
- 1 x 24V power supply to connect to the controller. Comes with an AU/NZ IEC plug and cable. (For non AU/NZ customers, MMLED will supply an adaptor plug suitable for your country)
- Universal Mounting clips
Beam Angle Choice
| Total Height | Tank Style | ||
| Live Plants & CO2 | Live Plants no CO2 | No live Plants | |
| 15cm | 120° | 120° | 120° |
| 30cm | 120° | 120° | 120° |
| 45cm | 120° | 120° | 120° |
| 60cm | 90° | 90° | 120° |
| 75cm | 60° | 90° | 90° |
| 90cm | 45° | 60° | 90° |
| 100cm | 30° | 45° | 60° |
The beam angle affects how wide or narrow the light beam will be. A lower degree beam angle like 30 will have a narrower beam than 45.
Narrower beams produce higher intensity and PAR directly below the light but that intensity tapers off as you move out from the center.
Wider beams have a lower intensity and PAR directly below but the intensity does not taper off as quickly.
Choosing an appropriate beam angle for your tank dimensions and lighting needs is not an exact science but use this table as a general guideline.
PAR/PPFD for a Four Tube Set
| Beam Angle | Height from light to bottom of tank in cm | ||||
| 30 | 45 | 60 | 75 | ||
| 120° | 318 | 241 | 184 | 138 | |
| 90° | 383 | 290 | 220 | 168 | |
| 60° | 469 | 355 | 269 | 205 | |
| 45° | 630 | 478 | 364 | 275 | |
| 30° | 707 | 535 | 408 | 310 | |
NOTE: PAR is quoted for WRGB, will be a little lower for the RGB-UV and RGB-C Spectrums
This table shows the PAR (PPFD) readings at distances 30cm to 75cm for the various beam angles for a Two tube set.
Additional tubes will increase PAR by 77% if placed close to each other or will at a minimum keep the same PAR if spaced apart.
PPFD readings of 50 umol/m2/s or over at the substrate is considered adequate lighting to sustain plant growth.
Specs
| Model | MML-FSHD-4TUBESET | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Colour Tunable Aurora HD Fresh Water Four Tube Set | |||||||||||||||||||||
| Cabling | Long 2 metre cable that exits from the end of each tube | |||||||||||||||||||||
| Dimensions | each tube is 2cm high x 3cm wide | |||||||||||||||||||||
| Input Voltage | 110V-240VAC Suitable for worldwide use | |||||||||||||||||||||
| Operating Voltage | Low Safe 24V DC | |||||||||||||||||||||
| Output |
NOTE: LUMENS is quoted for WRGB, will be a little lower for the RGB-UV and RGB-C Spectrums
|
|||||||||||||||||||||
| Dimming | Fully dimmable 0%-100% | |||||||||||||||||||||
| Colour | Fully colour tunable. Deep colour toning, vibrant and rich natural colour rendering | |||||||||||||||||||||
| LEDS | RGB 3-in-1 Power LEDS your choice of Crimson Fluoresce, UV or White power leds | |||||||||||||||||||||
| Cooling | Passive cooling no fans inside | |||||||||||||||||||||
| IP Rating | IP64 | |||||||||||||||||||||
| CRI | Colour Rendering index is more than 96% for natural colour reproduction | |||||||||||||||||||||
| Spectrum | Full Spectrum. Looks great and hits all photosynthesis peaks for plants to thrive in.
|
|||||||||||||||||||||
| Warranty | 1 year | |||||||||||||||||||||
| Build | |
FAQ
Click the questions to reveal the answer
Yes this light is fully dimmable using either the hand held remote or the smart phone app.
Is everything included in the box?
Yes everything is included except the mounting hardware which is optional
No it doesn't. This light is already in it's own fixture complete and ready to plug in and go.
Can it be used with a powerpoint timer?
Yes it can be used with a powerpoint timer but there is an integrated smart controller where you can use an app to control on/off and lamp intensity and automate these things on a 7 day cycle
What should I do if I have a problem?
This light is designed for trouble free long term use under normal operating conditions, if you need help you can use the MMLED online chat for assistance and trouble shooting. In the unlikely event there is a fault, the lamp is covered by a 12 months peace-of-mind manufacturers guarantee and you can return it to the place of purchase for a replacement or repair.
What type of light does it produce?
This lamp produces True Colour visible light, a perfect full spectrum for animals and plants and will make your animal colours show like you've never seen them before. No UV light is produced by this lamp.
One MMLED True Colour Reptile & Amphibian LED lamp, Manual dimmer or Smart dimmer, power supply and universal mounting hardware kit. Connect it up, plug in, relax and enjoy!
You Choose the Length and Spectrums
MMLED Fixed Spectrum Tube Sets (aka XB5) allow you design your own power led lighting tube system, i.e. to choose the length, number of tubes and the spectrum of each tube in the set.
Choose up to 5 tubes for the set and choose which spectrums you want for each tube.
Each tube in the set is separately dimmable but not colour tunable. Colour tuning can be achived by dimming or brightening tubes to get the colour you want.
Feature Summary
- New model Classy and Robust rectangular profile, available in Black or Silver, 50% more power leds and high tech driverless technology!
- Amazing Colour Pop and Awesome shimmer!
- Fully dimmable
- Safe low 24VDC for your safety
- Anti Glare Rhombus optic lenses for crisp, clear and vibrant colours
- Ultrabright 3 Watt Power Leds
- Small 2cm x 3cm footprint and light weight 150g per 30cm
High Tech Anti Glare Rhombus lenses
These power led tubes feature high tech 2-in-1 Anti Glare Rhombus Optic lens and reflectors for maximum output and awesome shimmer! Available in 120°, 90°, 60°, 45° and 30° beam angles to target specific depths and to achieve specific PAR. Lenses can be easily DIY swapped if your needs change.
Hood Mounting
Hood mounting requires a little diy because all hoods are different, each tube comes with a pair of universal mounting clips to help make this an easy job.
NOTE: You should have adequate airflow under the hood to prevent overheating and have glass lids to prevent excess humidity. Doing this will LED lights will have a will have
Glasstop Mounting
And finally, the tubes are so light and compact they can be laid directly on glass lids.
Most of the heat on these lights is projected upwards and very little heat is projected down so the glass won't get too hot.
Whats In The Box
- 1,2,3,4 or 5 tube set of 30,60,90,120,150 and 180cm lenth
- Universal Mounting Clips
- 24V power supply
- Optional Rotary or Smart Dimmer(s) Download the Smart Dimmer Manual
Beam Angle Choice For Fresh Water
| Total Height | Tank Style | ||
| Live Plants & CO2 | Live Plants no CO2 | No live Plants | |
| 15cm | 120° | 120° | 120° |
| 30cm | 120° | 120° | 120° |
| 45cm | 120° | 120° | 120° |
| 60cm | 90° | 90° | 120° |
| 75cm | 60° | 90° | 90° |
| 90cm | 45° | 60° | 90° |
| 100cm | 30° | 45° | 60° |
The beam angle affects how wide or narrow the light beam will be. A lower degree beam angle like 30 will have a narrower beam than 45.
Narrower beams produce higher intensity and PAR directly below the light but that intensity tapers off as you move out from the center.
Wider beams have a lower intensity and PAR directly below but the intensity does not taper off as quickly.
Choosing an appropriate beam angle for your tank dimensions and lighting needs is not an exact science but use this table as a general guideline.
Optic lenses are DIY swappable so if you change your mind later you can buy a different beam angle and swap them over.
Specs
| Model | MML-FSXB5-TUBE |
|---|---|
| Name | Fresh Water Fixed Spectrum Tube Set |
| Cabling | Each tube ha a 2 metre cable that exits from the end of the tube, plug type is a 5.5/2.1 barrel plug ready to connect directly to a dimmer or 24V power supply. |
| Voltage | 110-240V AC Input, Operating voltage 24V DC |
| Dimming | Dimmable, less brightness uses less power |
| Power | 9 watts per 30cm of tube |
| LEDS | Epistar power leds arranged as shown in the pictures |
| Cooling | Passively cooled, heat is dissipated naturally. |
| IP Rating | IP64 |
| Beam | Your choice of 120°, 90°, 60°, 45° and 30° for targeted depths up to 2 metres. Use the planner tool to get a recommendation. |
| Shimmer | Creates a beautiful shimmer in the water like natural sunlight on a clear pond when the surface is rippled |
| Warranty | 1 year |
| Build | |
PAR
| Beam Angle | Height from light to bottom of tank in cm | ||||
| 15 | 30 | 45 | 60 | 75 | |
| 120° | 183 | 135 | 100 | 73 | 54 |
| 90° | 198 | 146 | 107 | 78 | 57 |
| 60° | 214 | 158 | 117 | 85 | 62 |
| 45° | 232 | 182 | 134 | 98 | 71 |
| 30° | 278 | 218 | 160 | 117 | 86 |
The PAR shown in the table is for one Tube.
PAR will be approx 88% higher for more multi tube sets.
- This is a high light system and is fully dimmable so you can run it at lower than full capacity if you don't need that much light.
Dimmer Option
5 Channel Wifi Sunrise/Sunset Controller (TC421)
A remarkable and versatile programmable 5 channel auto controller that gently, gradually and automatically dims and brightens your lights throughout the day just like the Sun, fades on gently in the morning, ramping up to max in the middle of the day and then gently back down again in the afternoon, to moonlight and then off.
Feature Summary
- New model Classier and sturdier rectangular profile, available in Black or Silver, 50% more power leds and high tech driverless technology!
- Amazing Colour Pop, colour saturation and Awesome shimmer!
- Fully dimmable, control via manual dimmer or app
- Safe low 24VDC for your safety
- Anti Glare Rhombus optic lenses for crisp, clear and vibrant colours
- Ultrabright 3 Watt Power Leds
- Small 2cm x 3cm footprint and light weight 150g per 30cm
You Choose the Length and Spectrum
NOTE: This is a tube only, no power supply. To be used as an add on or replacement.
Fixed Spectrum Spare/Replacement Tubes (aka XB5) are for building custom systems or for use aas a spacre or replacement.
As a guide, the Flora Sun Blend is the most popular for fresh water tanks because it naturally highlights blues and reds in fish and also has a perfect spectrum for growing plants and the 120000K Coral Sun tube is the most popular for marine tanks.
High Tech Anti Glare Rhombus lenses
These power led tubes feature high tech 2-in-1 Anti Glare Rhombus Optic lens and reflectors for maximum output and awesome shimmer! Available in 120°, 90°, 60°, 45° and 30° beam angles to target specific depths and to achieve specific PAR. Lenses can be easily DIY swapped if your needs change.
Available in Black or Silver
These Fixed Colour lights are available in smooth anodised Silver or Black colour.
Hood Mounting
Hood mounting requires a little diy because all hoods are different, each tube comes with a pair of universal mounting clips to help make this an easy job.
NOTE: You should have adequate airflow under the hood to prevent overheating and have glass lids to prevent excess humidity. Doing this will LED lights will have a will have
Glasstop Mounting
And finally, the tubes are so light and compact they can be laid directly on glass lids.
Most of the heat on these lights is projected upwards and very little heat is projected down so the glass won't get too hot.
Whats In The Box
- 1 x Fixed Spectrum Spare/Replacement Tube 30,60,90,120,150 or 180cm lenth
- Universal mounting clips
Beam Angle Choice For Fresh Water
| Total Height | Tank Style | ||
| Live Plants & CO2 | Live Plants no CO2 | No live Plants | |
| 15cm | 120° | 120° | 120° |
| 30cm | 120° | 120° | 120° |
| 45cm | 120° | 120° | 120° |
| 60cm | 90° | 90° | 120° |
| 75cm | 60° | 90° | 90° |
| 90cm | 45° | 60° | 90° |
| 100cm | 30° | 45° | 60° |
The beam angle affects how wide or narrow the light beam will be. A lower degree beam angle like 30 will have a narrower beam than 45.
Narrower beams produce higher intensity and PAR directly below the light but that intensity tapers off as you move out from the center.
Wider beams have a lower intensity and PAR directly below but the intensity does not taper off as quickly.
Choosing an appropriate beam angle for your tank dimensions and lighting needs is not an exact science but use this table as a general guideline.
Optic lenses are DIY swappable so if you change your mind later you can buy a different beam angle and swap them over.
Beam Angle Choice For Salt Water
| Total Height | Tank Style | ||
| Mixed corals inc SPS | LPS & Softies | No Live Corals | |
| 15cm | 120° | 120° | 120° |
| 30cm | 120° | 120° | 120° |
| 45cm | 90° | 120° | 120° |
| 60cm | 60° | 90° | 120° |
| 75cm | 45° | 60° | 90° |
| 90cm | 30° | 45° | 60° |
| 100cm | 30° | 45° | 60° |
The beam angle affects how wide or narrow the light beam will be. A lower degree beam angle like 30 will have a narrower beam than 45.
Narrower beams produce higher intensity and PAR directly below the light but that intensity tapers off as you move out from the center.
Wider beams have a lower intensity and PAR directly below but the intensity does not taper off as quickly.
Choosing an appropriate beam angle for your tank dimensions and lighting needs is not an exact science but use this table as a general guideline.
Optic lenses are DIY swappable so if you change your mind later you can buy a different beam angle and swap them over.
Specs
| Model | MML-FSXB5-TUBE |
|---|---|
| Name | Fixed Spectrum Spare/Replacement Tube |
| Cabling | Each tube ha a 2 metre cable that exits from the end of the tube, plug type is a 5.5/2.1 barrel plug ready to connect directly to a dimmer or 24V power supply. |
| Voltage | 110-240V AC Input, Operating voltage 24V DC |
| Dimming | Dimmable, less brightness uses less power |
| Power | 9 watts per 30cm of tube |
| LEDS | Epistar power leds arranged as shown in the pictures |
| Cooling | Passively cooled, heat is dissipated naturally. |
| IP Rating | IP64 |
| Beam | Your choice of 120°, 90°, 60°, 45° and 30° for targeted depths up to 2 metres |
| Shimmer | Creates a beautiful shimmer in the water like natural sunlight on a clear pond when the surface is rippled |
| Spectrum | You choose the spectrums you need |
| Warranty | 1 year |
| Build | |
PAR
| Beam Angle | Height from light to bottom of tank in cm | ||||
| 15 | 30 | 45 | 60 | 75 | |
| 120° | 183 | 135 | 100 | 73 | 54 |
| 90° | 198 | 146 | 107 | 78 | 57 |
| 60° | 214 | 158 | 117 | 85 | 62 |
| 45° | 232 | 182 | 134 | 98 | 71 |
| 30° | 278 | 218 | 160 | 117 | 86 |
The PAR shown in the table is for one Flora Sun Tube. Some spectrum tubes have higher PAR than this e.g.6500K Cool White, and some have lower e.g. Deep Red Highlighter.
PAR will be approx 88% higher for more multi tube sets.
- This is a high light system and is fully dimmable so you can run it at lower than full capacity if you don't need that much light.
