You Choose the Length and Spectrums

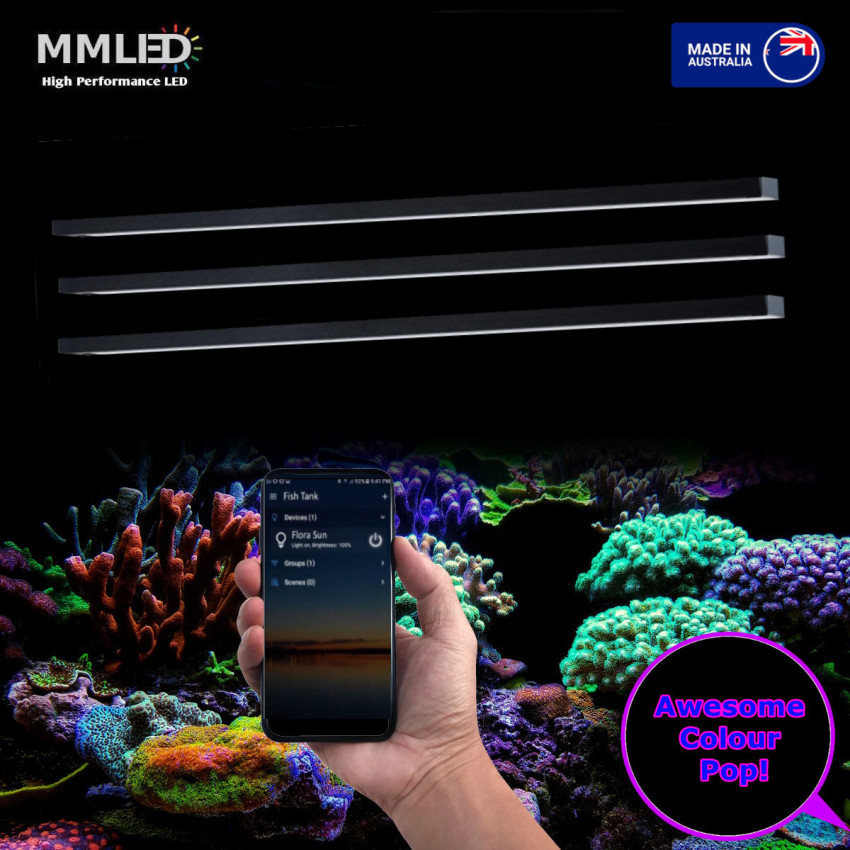

MMLED Fixed Colour Tube Sets (aka XB5) allow you design your own power led lighting tube system, i.e. to choose the length, number of tubes and the spectrum of each tube in the set.
Choose up to 5 tubes for the set and choose which spectrums you want for each tube.
Each tube in the set is separately dimmable but not colour tunable. Colour tuning can be achived by dimming or brightening tubes to get the colour you want.
Feature Summary
New model, Classier and sturdier rectangular profile, available in Black or Silver, 50% more power leds and
high tech driverless technology!
Amazing Colour Pop and Awesome shimmer!
Fully dimmable
Safe low 24VDC for your safety
Anti Glare Rhombus optic lenses for crisp, clear and vibrant colours
Ultrabright 3 Watt Power Leds
Small 2cm x 3cm footprint and light weight 150g per 30cm
High Tech Anti Glare Rhombus lenses
These power led tubes feature high tech 2-in-1 Anti Glare Rhombus Optic lens and reflectors for maximum output and awesome shimmer! Available in 120°, 90°, 60°, 45° and 30° beam angles to target specific depths and to achieve specific PAR. Lenses can be easily DIY swapped if your needs change.
Hood Mounting
Hood mounting requires a little diy because all hoods are different, each tube comes with a pair of universal mounting clips to help make this an easy job.
Glasstop Mounting
And finally, the tubes are so light and compact they can be laid directly on glass lids.
Most of the heat on these lights is projected upwards and very little heat is projected down so the glass won't get too hot.
Whats In The Box
1,2,3,4 or 5 tube set of 30,60,90,120,150 and 180cm lenth
Universal Mounting Clips
24V power supply
Optional Rotary or Smart Dimmer(s)
Beam Angle Choice For Salt Water
Total Height
Tank Style
Mixed corals inc SPS
LPS & Softies
No Live Corals
15cm
120°
120°
120°
30cm
120°
120°
120°
45cm
90°
120°
120°
60cm
60°
90°
120°
75cm
45°
60°
90°
90cm
30°
45°
60°
100cm
30°
45°
60°
The beam angle affects how wide or narrow the light beam will be. A lower degree beam angle like 30 will have a narrower beam than 45.
Narrower beams produce higher intensity and PAR directly below the light but that intensity tapers off as you move out from the center.
Wider beams have a lower intensity and PAR directly below but the intensity does not taper off as quickly.
Choosing an appropriate beam angle for your tank dimensions and lighting needs is not an exact science but use this table as a general guideline.
Optic lenses are DIY swappable so if you change your mind later you can buy a different beam angle and swap them over.
Specs
Model
MML-CSXB5-TUBE
Name
Marine Fixed Spectrum Tube Set
Cabling
Each tube ha a 2 metre cable that exits from the end of the tube, plug type is a 5.5/2.1 barrel plug ready to connect directly to a dimmer or 24V power supply.
Voltage
110-240V AC Input, Operating voltage 24V DC
Dimming
Dimmable, less brightness uses less power
Power
9 watts per 30cm of tube
LEDS
Epistar power leds arranged as shown in the pictures
Cooling
Passively cooled, heat is dissipated naturally.
IP Rating
IP64
Beam
Your choice of 120°, 90°, 60°, 45° and 30° for targeted depths up to 2 metres. Use the planner tool to get a recommendation.
Shimmer
Creates a beautiful shimmer in the water like natural sunlight on a clear pond when the surface is rippled
Warranty
2 Years
Build
PAR
Beam Angle
Height from light to bottom of tank in cm
15
30
45
60
75
120°
183
135
100
73
54
90°
198
146
107
78
57
60°
214
158
117
85
62
45°
232
182
134
98
71
30°
278
218
160
117
86
The PAR shown in the table is for one Tube.
PAR will be approx 88% higher for more multi tube sets.
This is a high light system and is fully dimmable so you can run it at lower than full capacity if you don't need that much light.
Dimmer Option
5 Channel Wifi Sunrise/Sunset Controller (TC421)
A remarkable and versatile programmable 5 channel auto controller that gently, gradually and automatically dims and brightens your lights throughout the day just like the Sun,
fades on gently in the morning, ramping up to max in the middle of the day and then gently back down again in the afternoon, to moonlight and then off.
If you want to add more lights to this set later we'll provide a power supply and cabling capable of running up to 5 x 60cm lights
Look in the product description for mounting hardware details. Each bracket has room for up to three lights or you can buy more brackets from our Accessories page if you want to spread the lights out.
