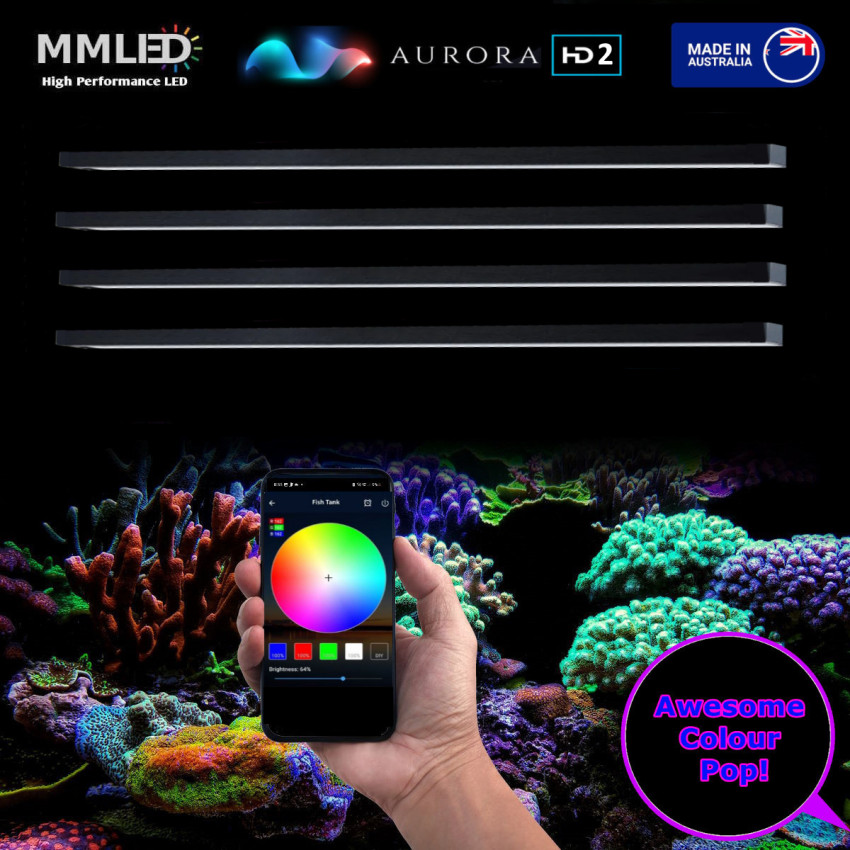

Colour Tunable Aurora HD2 Coral Reef Four Tube Set

Awesome Deep, Rich and Vibrant Colours

The Aurora HD2 Coral Reef Series Lights

New from the MMLED aquatic labs, the Aurora HD2 Coral Reef high powered colour tunable four tube set specifically designed for Marine aquariums.

The Colour Tunable Coral Reef panel has a mix of 3-in-1 RGB 9W power leds with the blue channel pumped up high and the red and green channels down low for the perfect look and colour balance for marine aquariums.

UVA leds added to the mix produces a stunning result, your marine fish and corals will look their spectactular best with gorgeous colour pop like you've never seen.

HD Really? The first comment we received when showing off this light was "It looks like HD" , and it does! The viewing experience has to be seen to be believed, crisp, clear, vibrant deep and natural colours like you see on HD TV!

Feature rich and packs a punch

Feature Summary

• Amazing colour Pop, colour saturation and Awesome shimmer!
• Each tube is separately Colour tunable 7000K-25000K
• Programmable colour tuning, dimming and On/Off in the app
• Google Home & Alexa integration for advanced automation
• Safe low 24VDC for your safety
• Anti Glare Rhombus optic lenses for crisp, clear and vibrant colours
• Bluetooth/Wifi Smart,or Manual push button controller
• Bracket mounting option
• Perfect for Coral Reef and fish displays

Engineered for reliability and performance

MMLED Aurora HD2 Coral Reef series lights use high powered quality leds running at optimum power for the longest possible life.

An exciting visual experience similar with awesome shimmer and a spectacular colour pop view similar to what you see 10 metres down on an equatorrial coral reef at midday.

Featuring a stunning array of colour tunable 3-in-1 RGB power leds with a pumped blue channel plus UV for maximum colour pop for fish and corals, fully colour tunable to allow you to get the exact look and performance you want.

The MMLED Aurora HD2 Coral Reef series lights not only produce an awesome and unrivaled viewing experience with glowing deep, rich and natural colours, but also have the perfect spectrum to grow and sustain Macro Algae, SPS and LPS corals like there's no tomorrow!

A perfect Marine spectrum

The MMLED Colour Tunable Coral Reef series have a perfect mix of 9W RGB 3-in-1 power leds with a boosted blue channel and with Red and Green for colour balance + 3W UVA power leds that together deliver vibrant and crisp natural lighting with awesome colour rendition and shimmer.

Unlike other RGB leds on the market, MMLED RGB power leds incorporate real 660nm Deep Red and 450nm Royal Blue chips which deliver a beautiful natural full marine spectrum hitting all the photo peaks to sustain and maintain Coral, Corraline Algae, Zooxanthellae algae and Macro algae growth.

The Blue channel on these LEDS are pumped so that they are the dominant colour and with Red and Green for colour balance.

With all channels at the same intensity, you get the perfect Marine spectrum that produces stunning clarity and colour depth, combined with the UVA power leds you'll see amazing colour pop on corals not seen under any other light.

Controller Options

Smart Controller (not suitable for use with wall timers)

The smart controller has a sophisticated full featured app (Android and iOS) that allows control of the brightness and colour and with daily set and forget automation using Bluetooth or Wifi connectivity and is also Google Assistant and Alexa aware for advanced automation routines and voice control.

Manual Controller (suitable for use with wall timers)

For those that don't like or need technology and just want a great light that can be turned on and off at the wall. A simple manual push button controller for On/Off, brightness and colour settings that remembers the last setting after power off and on.

No Controller (suitable for use with wall timers)

For those that just need a great light with the perfect spectrum that turns on full and off at the wall plug. Perfect for commercial plant growers and those that want zero technology.

Download the smart controller manual

Download the push button controller manual

Hood Mounting

Hood mounting requires a little diy because all hoods are different, each tube comes with a pair of universal mounting clips to help make this an easy job.

Rim Mounting

The adjustable bracket mounting kit makes it a simple task to rim mount any rectangular style MakeMyLed tubes.

The bracket will fit on rims up to 21mm wide and the adjustable L shaped support rod is 250mm x 140mm

Glasstop Mounting

The tubes are so light and compact they can be laid directly on glass lids.

Most of the heat on these lights is projected upwards and very little heat is projected down so the glass won't get too hot.

Anti Glare Rhombus Optic lenses

The MMLED Aurora HD series lights feature dual purpose Anti Glare Rhombus Optic lenses/reflectors for crisp, clear and vibrant light.

Whats In The Box

• 1 x MMLED Aurora HD2 Four set for 30,60,90,120,150 or 180cm length with 2 metre cables
• 4 x Aurora HD2 Smart or Manual controllers, or direct connection with no controllers if you prefer just on/off at the wall
• 1 x 24V power supply to connect to the controller. Comes with an AU/NZ IEC plug and cable. (For non AU/NZ customers, MMLED will supply an adaptor plug suitable for your country)
• Universal Mounting clips or Rim mounting brackets for each tube.

Beam Angle Choice

The beam angle affects how wide or narrow the light beam will be. A lower degree beam angle like 30 will have a narrower beam than 45.

Narrower beams produce higher intensity and PAR directly below the light but that intensity tapers off as you move out from the center.

Wider beams have a lower intensity and PAR directly below but the intensity does not taper off as quickly.

Choosing an appropriate beam angle for your tank dimensions and lighting needs is not an exact science but use this table as a general guideline.

Specs

Model	MML-CSHD-4TUBESET
Name	Colour Tunable Aurora HD2 Coral Reef Four Tube Sett
Cabling	Long 2 metre cable that exits from the end of each tube
Dimensions	each tube is 2cm high x 3cm wide
Input Voltage	110V-240VAC Suitable for worldwide use
Operating Voltage	Low Safe 24V DC
Output	Length Lumens Power 30cm 2592 36W 60cm 5184 72W 90cm 7776 108W 120cm 10368 144W 150cm 12960 180W 180cm 15552 216W
PAR	Beam Angle Height from light to bottom of tank in cm  30  45  60  75  120°  318  241  184  138  90°  383  290  220  168  60°  469  355  269  205 45° 630 478 364 275 30° 1017 771 588 441
Dimming	Fully dimmable 0%-100%
Colour	Fully colour tunable 7000K-25000K. Deep colour toning, vibrant and rich natural colour rendering
LEDS	RGB 3-in-1 Power LEDS with pumped Blue Channel + UVA power LEDS
Cooling	Passive cooling no fans inside
IP Rating	IP64
CRI	Colour Rendering index is more than 96% for natural colour reproduction
Spectrum	Full Spectrum. Looks great and hits all photosynthesis peaks for Coral, Corraline Algae, Zooxanthellae algae and Macro algae to thrive in.
Warranty	2 Years
